Semi-Automatic Micro Doser Dry Powder Auger Filler | VTOPS-P4

1g-50g Micro Doser Dry Powder Small Auger Filler | VTOPS-P4

1g-50g Micro Doser Small Auger Filler Machine | VTOPS-P4

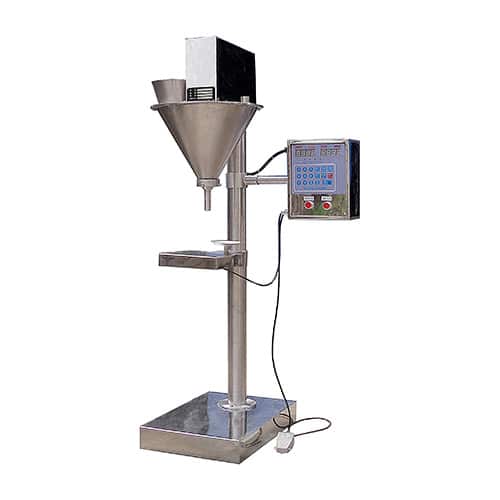

Semi-automatic micro small doser auger filler applies to dosing filling for the dry powders from 1 gram to 50 grams.

Page Contains:

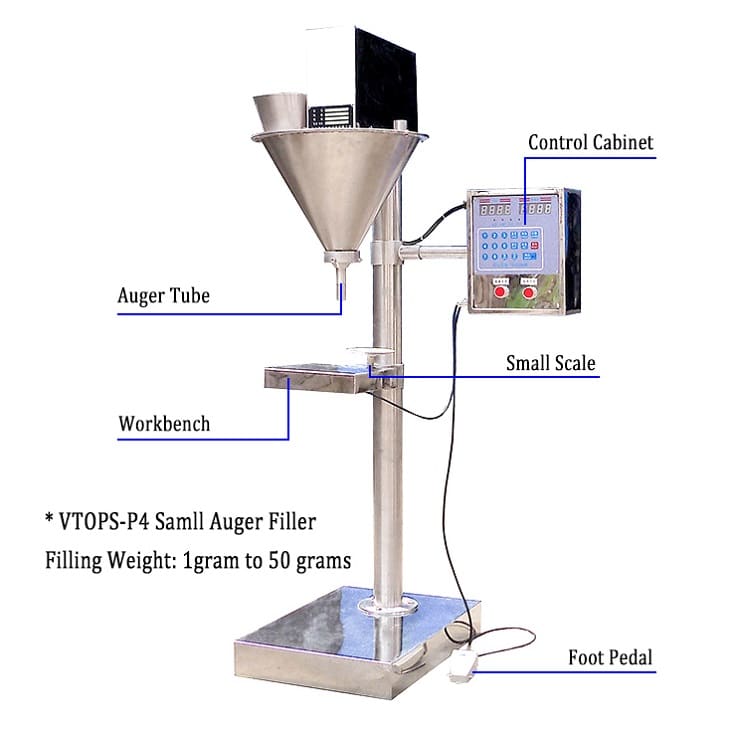

Small Auger Filler

1. Features:

  • 1. Microcomputer control: adjustable parameters, the error can be automatically corrected.
  • 2. Easy to use: without space restriction.
  • 3. Good corrosion resistance, not contaminated material.

2. Technical Parameters:

  • Model: VTOPS-P4
  • Brand: VTOPS
  • Filling Weight: 1g-50g
  • Filled Error: ≤ 0.1g-1g
  • Measurement Method: Auger Dosing
  • Filling Speed: 0-40 fills/min
  • Contact Materials: SUS 304
  • HMI: Keyboard
  • Control System: SCM
  • Filling Motor: Stepper Motor
  • Hopper Volume: 15 Liters
  • Machine Weight: 120 Kg
  • Voltage: AC Single-phase 220V 50/60Hz
  • Power: 0.3Kw
  • Dimensions: 60*50*160cm
  • Manufacturer: Zhengzhou Vtops Machinery Co., Ltd.

* Attention Please!
The maximum weight of the weighing platform is 200 grams. Exceeding the allowable weight will cause the load cell to malfunction.

3. Working Video:

Video Description:
Installation Video: 0″ to 5’22”; Working Video: 5’22” to end.
