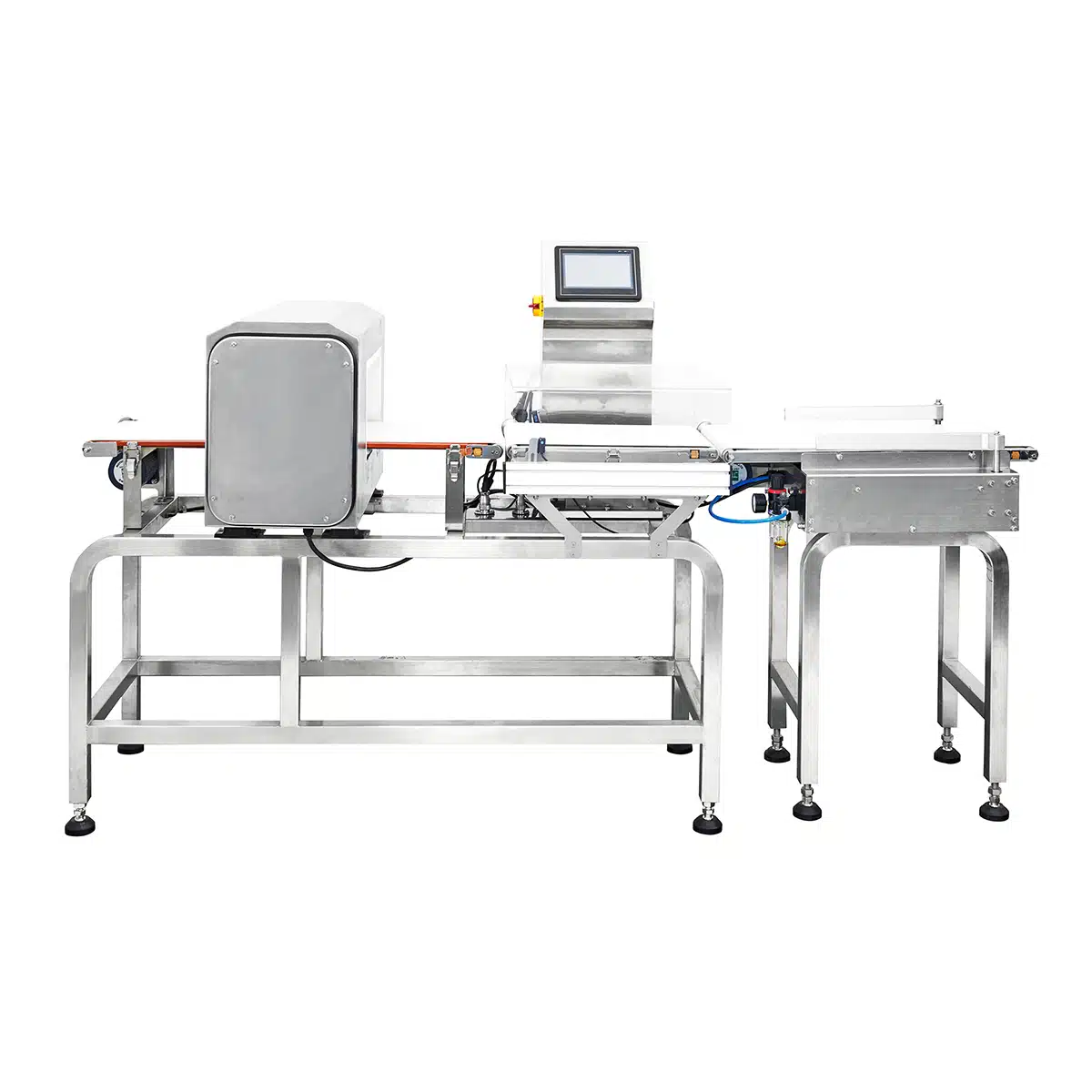

Checkweigher Metal Detector Combination – Metal Detection and Weight Control Integrated Solution
VTOPS’s Checkweigher Metal Detector Combination is an advanced device designed for the food, pharmaceutical and packaging industries. It integrates high-precision weight detection and metal detection to ensure your products meet quality standards and prevent any metal contamination.
1. Features:
- High-Precision Weight Detection: Checkweigher utilizes advanced weighing sensors to provide high-precision detection.
- Metal Detection: Detects all types of metals, including ferrous, non-ferrous, and stainless steel.
- Multiple Applications: Suitable for food, pharmaceutical, cosmetics, beverage, and packaging industries.
- User-Friendly Interface: Intuitive touchscreen interface simplifying the operation process.
- Automatic Rejection System: Automatically removes products with anomalies to ensure smooth production lines.
2. Benefits
- Enhance Product Quality: Ensures each product’s weight and safety meet standards.
- Reduce Risks: Prevents metal contamination, protecting consumer safety.
- Improve Production Efficiency: Integrated design reduces space occupancy and optimizes production flow.
3. Technical Parameters:
| Model No. | VTOPS-CM3012 | VTOPS-CM3015 | VTOPS-CM4015 | VTOPS-CM4020 |
|---|---|---|---|---|
| Channel Size (W×H) | 30×12 cm | 30×15 cm | 40×15 cm | 40×20 cm |
| Sensitivity - Fe | 0.8 mm | 1.0 mm | 1.0 mm | 1.2 mm |
| Sensitivity - SUS | 1.5 mm | 2.0 mm | 2.0 mm | 2.5 mm |
| Protection Class | IP54/IP65 | IP54/IP65 | IP54/IP65 | IP54/IP65 |
| Speed (m/min) | 32-52 m/min | 32-52 m/min | 32-52 m/min | 32-52 m/min |
| Voltage | AC 1P 220V | AC 1P 220V | AC 1P 220V | AC 1P 220V |
| Power | 440W 2A | 440W 2A | 660W 3A | 660W 3A |
| Dimension (L×W×H) | 146×114×128 cm | 146×120×128 cm | 194×154×136 cm | 208×148×136 cm |
| Gross Weight | 270 kg | 290 kg | 380 kg | 390 kg |
