Reliable Flow Wrapper Packaging Machines Supplier

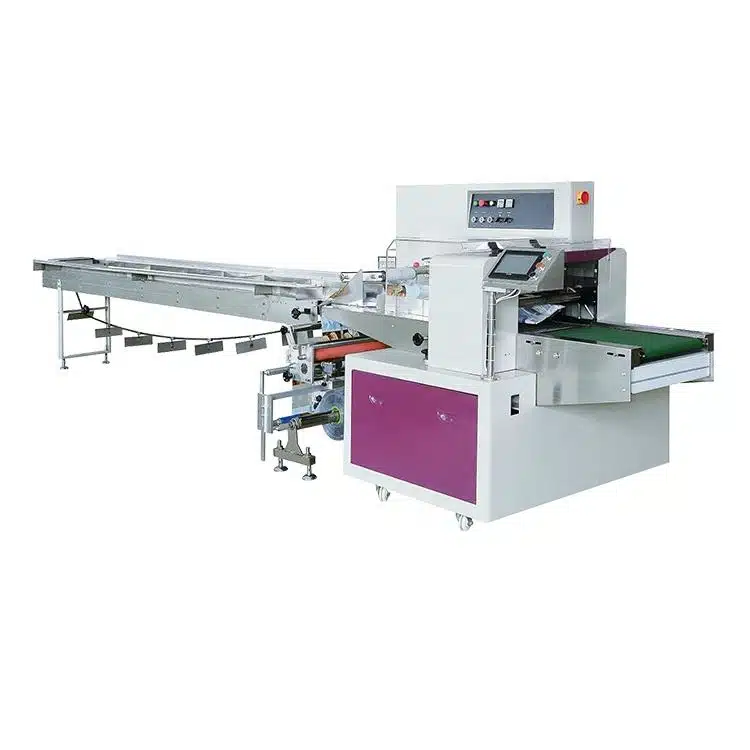

Horizontal flow wrappers perform three tasks in one fluid, continuous motion: infeed and spacing of items, wrapping the film around the items, and then sealing and discharging the finished product. The packages need to be protective, consistent, and professional without sacrificing speed. Flow wrappers are often called form fill and seal machines.
Horizontal flow wrappers are widely used in various industries, including food, personal care, household products, and more.
Applications
Applications of Flow Wrapper Packaging Machine
Flow wrapping packaging machine can preserve your raw products and offer protection. The most common applications of flow wrapping machines are biscuits and cookies, chocolate bars, candy bars, noodles, packs of tissues, frozen meats, boxes of tea, and baked goods.
Flow wrapping is also used for packing high-hygiene requirement products such as various medical masksmedicines and lipsticks.
Features
- Three Servos
- Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
- The human-machine interface features easy and quick settings and operation.
- The flow wrap packaging machine has a self-failure diagnosis system and a clear failure display.
- A high sensitivity photoelectric sensor tracing color blocks, numerical input of cutting sealing position for extra accuracy.
- Temperature-independent PID control is more suitable for different packaging materials.
- And another advantage is a positioned stop function, without sticking the knife and not wasting film.
- The driving system is simple, reliable working, and convenient for maintenance.
- All controls of the horizontal flow wrapper are realized through software, easy for function adjusting, and technical upgrades.
Technical Parameters
Up-paper Flow Wrapper Machine (Servo)
| Models | VTOPS-FW250U | VTOPS-FW350U | VTOPS-FW450U | VTOPS-FW600U |
|---|---|---|---|---|
| Brand | VTOPS | |||
| Max. Film Width | 250mm | 350mm | 450mm | 600mm |
| Pouch Width | 30-110mm | 40-160mm | 50-210mm | 50-280mm |
| Pouch Length | 5-600cm | |||
| Product High | Max. 35mm or 50mm | Max. 60/80/100/140mm | ||
| Speed | 40-230bags/min | 30-180bags/min | 30-180bags/min | |
| Voltage | AC single-phase 220V | |||
| Power | 2.4kw | |||
| Total Weight | 410Kg | 490Kg | 550Kg | 620Kg |
| Dimensions | 380*70*145cm | 402*750*145cm | 4020*82*145cm | 400*100*150cm |
| Warranty Period | 2 years | |||
| Manufacturer | Zhengzhou Vtops Machinery Co. Ltd. | |||
| Add-on | ① Ribbon Coding; | |||
|
[1]: Capacity refers to the weight of the material filling in the pre-made pouch. It is a guideline value as it depends on the size and density of the materials.
[2]: All the above parameters are the parameters of the host of pick-fill-seal packing machine, not including the metering and dosing device. |
||||
Down-paper Flow Wrapper Machine (Servo)
| Models | VTOPS-FW250D | VTOPS-FW350D | VTOPS-FW450D | VTOPS-FW600D | VTOPS-FW700D | VTOPS-FW800D |
|---|---|---|---|---|---|---|
| Brand | VTOPS | |||||
| Max. Film Width | 250mm | 350mm | 450mm | 600mm | 700mm | 800mm |
| Pouch Width | 30-110mm | 40-160mm | 50-210mm | 50-280mm | 50-330mm | 50-380mm |
| Pouch Length | 5-600cm | |||||
| Product High | Max. 35mm or 50mm | Max. 60/80/100/140mm | ||||
| Speed | 40-230bags/min | 30-180bags/min | 20-120bags/min | |||
| Voltage | AC single-phase 220V | |||||
| Power | 2.4kw | |||||
| Total Weight | 410Kg | 490Kg | 550Kg | 620Kg | 720Kg | 780Kg |
| Dimensions (cm) | 390*70*132 | 402*720*132 | 402*82*145 | 402*100*145 | 402*108*150 | 402*115*150 |
| Warranty Period | 2 years | |||||
| Manufacturer | Zhengzhou Vtops Machinery Co. Ltd. | |||||
| Add-on | ① Ribbon Coding; | |||||
|
[1]: Capacity refers to the weight of the material filling in the pre-made pouch. It is a guideline value as it depends on the size and density of the materials.
[2]: All the above parameters are the parameters of the host of pick-fill-seal packing machine, not including the metering and dosing device. |
||||||

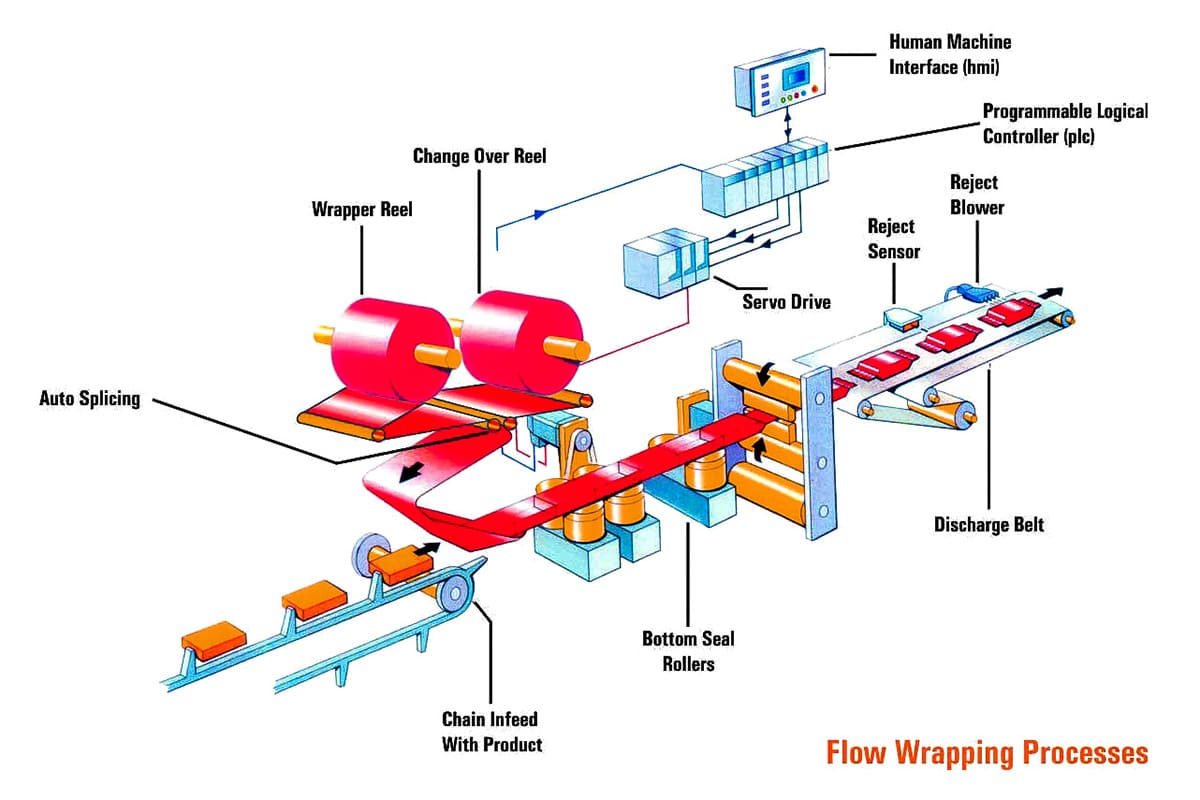

Flow Work Chart
Flow Work Chart of Flow Wrapping Machine
The flow work chart showing how does a flow wrapper packaging machine working process.
People Also Ask
What is Flow Wrap Packaging
How Much Does A Flow Wrapper Cost
Model Explanation of Flow Wapper Packaging
- VTOPS: brand of VTOPS, enjoy a 2-year warranty.
- FW: first letter of a Flow Wrapper.
- 250: Max. film width is 250mm.
- U: Up-paper;
D: Down-paper
Why Choose VTOPS
With over 20 years of combined experience in manufacturing packaging machines, we pride ourselves on our ability to rise to a challenge and solve problems.
We will not only find a cost-effective and efficient packing solution that meets your requirements, being used to working with both straightforward and complicated bespoke jobs. And also provide a warranty period of up to 2 years, so that you can use our machines with peace of mind.
