Given Style Premade Bag Rotary Pick Fill Seal Packing Machine

We have a modern factory of 40,000 square meters

China's Reliable Remade Bag Pick Fill Seal Packing Machine Manufacturer

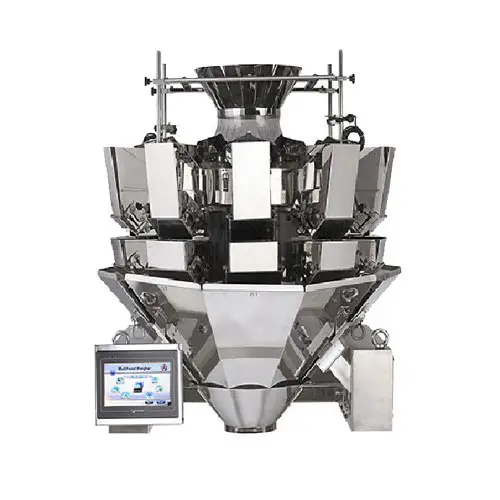

Premade bag rotary packing machine is an automatic pick fill seal machine for pre-made bags and pouches. Rotary premade bag pick fill seal packing machine with different dosing (such as multihead weigher, auger filler, liquid filler etc.) can be suitable for the automatic packing for granular, powder, liquid, paste etc. The machine can realize automatic pouch feeding, date printing, bag opening, material weighing filling, bag heat sealing and finished bag take-off. Vtops Machinery have different models for your reference depending on the packing material and bag size.

Features

1. Heat sealable premade flat pouch dosing and sealing.
2. PLC & HMI Control, easy for parameter setting and troubleshooting.
3. Different pouch size adaption, simple adjustment without tools.
4. Intelligent temperature controlling configuration, ensure the artistic and neat sealing.
5. Skip steps of filling and sealing if failed hold, or bag failed open.
6. Compatible Programs of powder, granule or liquid dosing, plug and play, easy for different products switching.
7. Machine stopping interlock with door opening.

Working Process

Technical Parameters

Stand up pouch, standard doypack, zipper doypack, center spout doypack, or corner spout doypack, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc.

Model
Number of Working Position
Metering Range
Speed
Bag Width
Bag Length
Air Consumption
Voltage
Power
Machine Dimensions
Machine Weight

 GD8-200B


VTOPS-GD8-200B
8
5g – 1500g
10-50 bags/min
100-210mm
100-350mm
0.6m3/min 0.65MPa
AC Three-phase 380V 50/60Hz
1.5kw
1650*1380*1500mm
1060kg

GD8-260B
VTOPS-GD8-260B
8
10g – 2000g
10-45 bags/min
150-260mm
150-400mm
0.6m3/min 0.65MPa
0.6m3/min 0.65MPa
1.8kw
1800*1400*1500mm
1200kg

 GD8-300B


VTOPS-GD8-300B
8
20g – 2500g
10-40 bags/min
200-300mm
200-450mm
0.6m3/min 0.65MPa
0.6m3/min 0.65MPa
2.0kw
2200*1850*1500mm
1380kg

Notes: The parameters are only the pick-fill-seal packaging system.

Applications

1. Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
2. Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer.
3. Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc.
4. Liquid / paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.
5. Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.
6. Other bagging materials.

Safety Device

1. Skip the step of filling if the failed hold, or bag failed open.
2. Skip the step of sealing if the failed hold, or failed filling.
3. Emergency stop and alarm if the coding ribbon used up.
4. Alarm if the safety door door is opened (option).
5. Alarm if the air pressure is used up.
6. Alarm if the seal temperature anomaly.

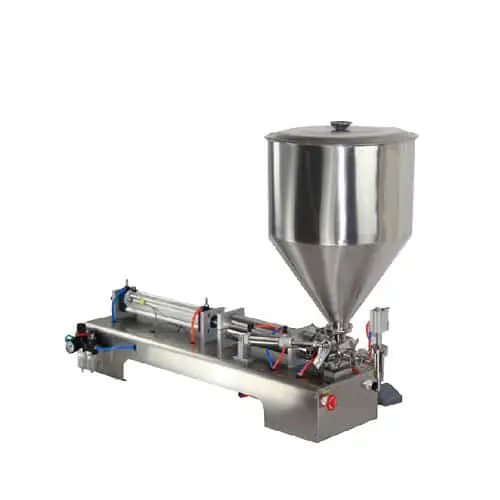

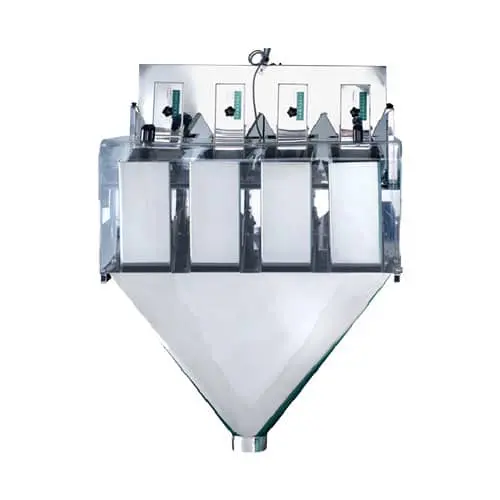

Measurement Method

Kinds of Premade Pouches

Stand up pouch, standard doypack, zipper doypack, center spout doypack, or corner spout doypack, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc.

Perforated Pouch

Zipper Pouch

Shaped Pouches

Spout Pouch

Pillow-Bag

Pillow Bag

Video Gallery

This video shows that the double auger filler machines are equipped on the rotating pick-fill-seal packaging machine. The advanced Fill-By-Weight system is available fill up to 3 kg, and the filling accuracy is greater than 99.7% if packaging 3kgs.

This video is a linear style pick-fill-seal packaging machine, which is also equipped with a auger dosing system. And a Checkweigher Machine is added at the end to check and reject unqualified products.
