Description

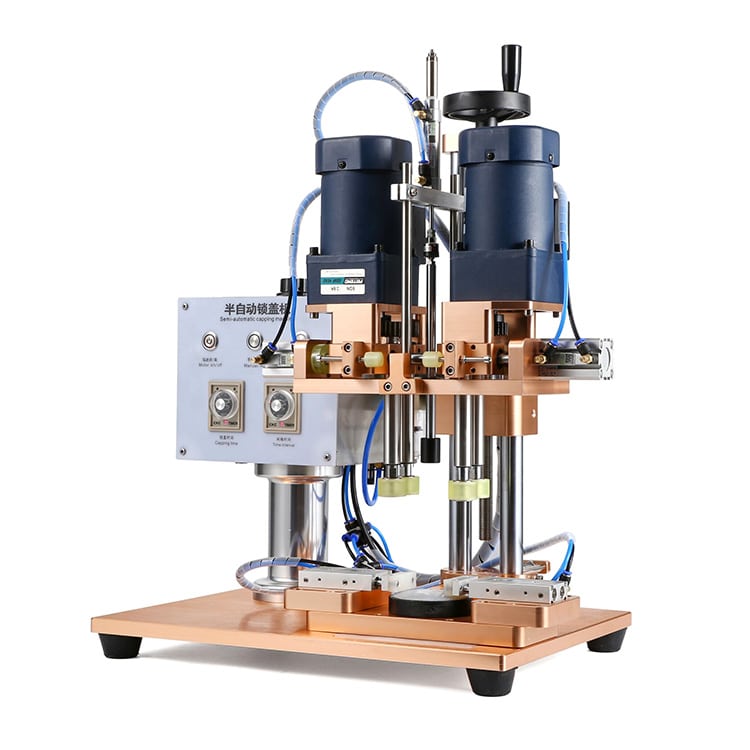

Four-wheel Desktop Twisting Capping Machine | VTOPS-CS-4W
Four-wheel clamping twisting capping machine of model VTOPS-CS-4W is an economical desktop semi-automatic capping machine. The capping machine applicable to the capping of cosmetic, medical, chemical, drinks and many kinds of bottle caps, etc.
The four-wheel desktop capping machine is suitable for different caps, such as: plastic screw caps, the duck mouth caps, and so on.
1. Features:
- 1. Micro-computer control, easy to operation, is the best choice for startups.
- 2. Electrically controlled movement, positioning device, easy operation.
- 3. Suitable for various locking caps with different shapes and specifications.
- 4. The capping speed and tightness can be adjusted for different caps.
- 5. Applicable to the capping of cosmetic, medical, chemical, drinks and many kinds of bottle caps, etc.
2. Featured Image:
3. Specifications:

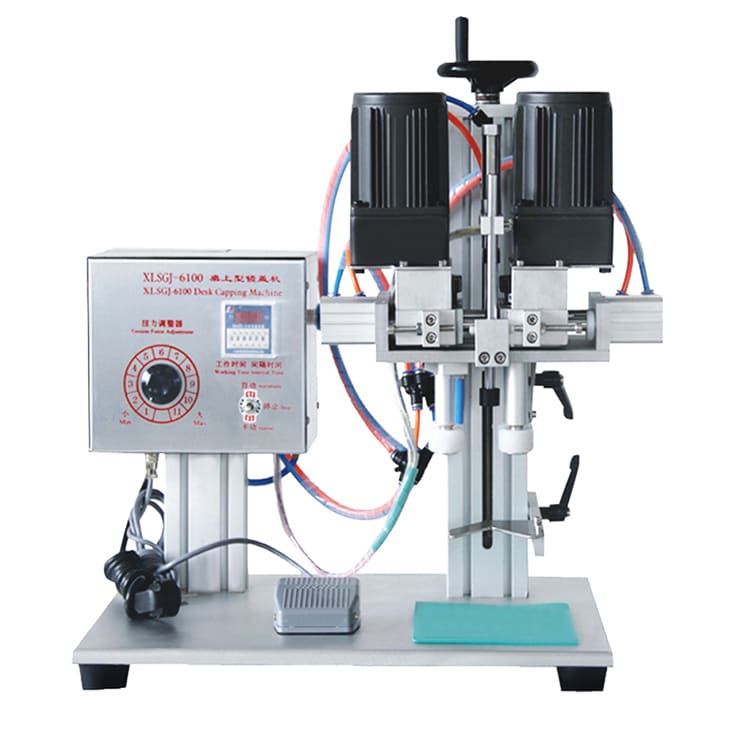

| Model | VTOPS-CS-4W | XLSGJ-6100 |
|---|---|---|
| Supported Cap Diameter | 20~70 mm | 20~50 mm |
| Twisting Wheel | 4 pieces | |
| Twisting Motor | 2 pieces | |
| Productivty | 20~50 pcs/min | |
| Supported Bottle’s Height | 30~330 mm | |
| Air Pressure | 0.4~0.6 MPa | |
| Voltage | AC Single-phase 220v 50Hz (Customizable) | |
| Power | 120 w | 90 w |
| Machine Weight | 30 kg | 30 kg |
| Machine Size | 500*380*700 mm | 360*380*500 mm |
