  • Reject Method: Air blowing
  • Weighing Belt Size(mm): L45cm x W10cm; Weighing Range: 5-200g
  • Weighing Belt Size(mm): L33cm x W10cm; Weighing Range: 2-200g
Model: VTOPS-CW200 Category: Tag:

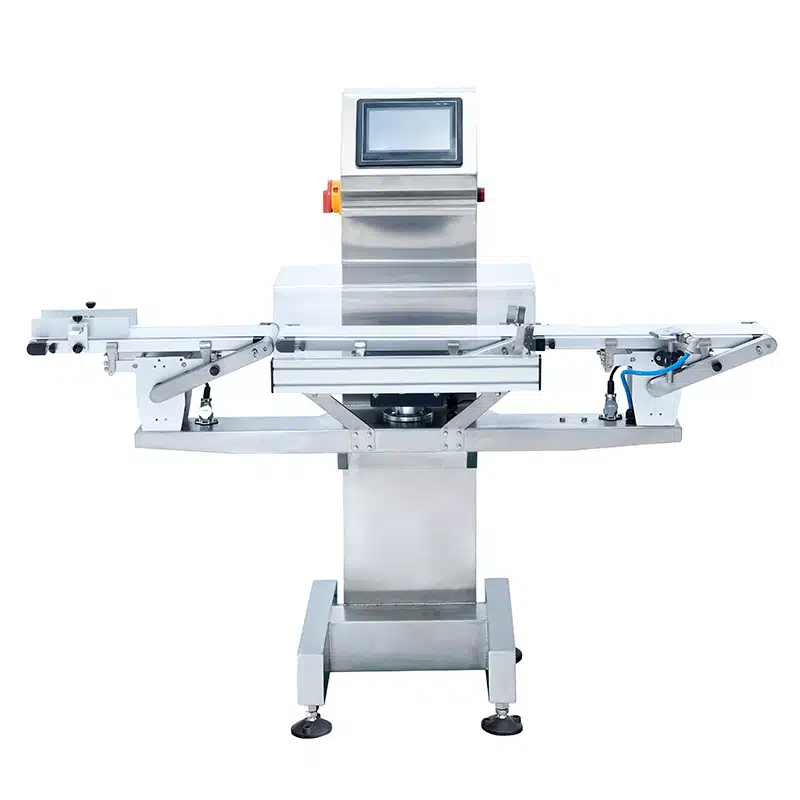

Auto High Precision 200g Check Weigher Machine with Reject Device

The high-precision 200g check weigher machine of model VTOPS-CW200 is used to detect whether the weight of a single product meets the set target weight, and the sorting device automatically rejects the substandard products.

Applications

Features

  • 1. Grand New modular control system.
  • 2. Fault Alarm by text displaying.
  • 3. Quick Release design.
  • 4. Auto program setting for easy operation.
  • 5. Production records in details.

Technical Parameters

Model CW200-1 CW200-2
Weighing Range 5-200g 2-200g
Accuracy XIII(1) XIII(1)
Max.Belt Speed 80m/min 70m/min
Max Weighing Speed 150PCS 130PCS
Weighing Belt Size(mm) L45cm x W10cm L33cm x W10cm
HMI 7” LCDTouch Screen
Reject Method Air blowing
Voltage AC Single-phase 220V 50/60Hz
Gross Weight 100 Kgs
Dimension(mm) L145xW57xH128cm

Layout Drawing

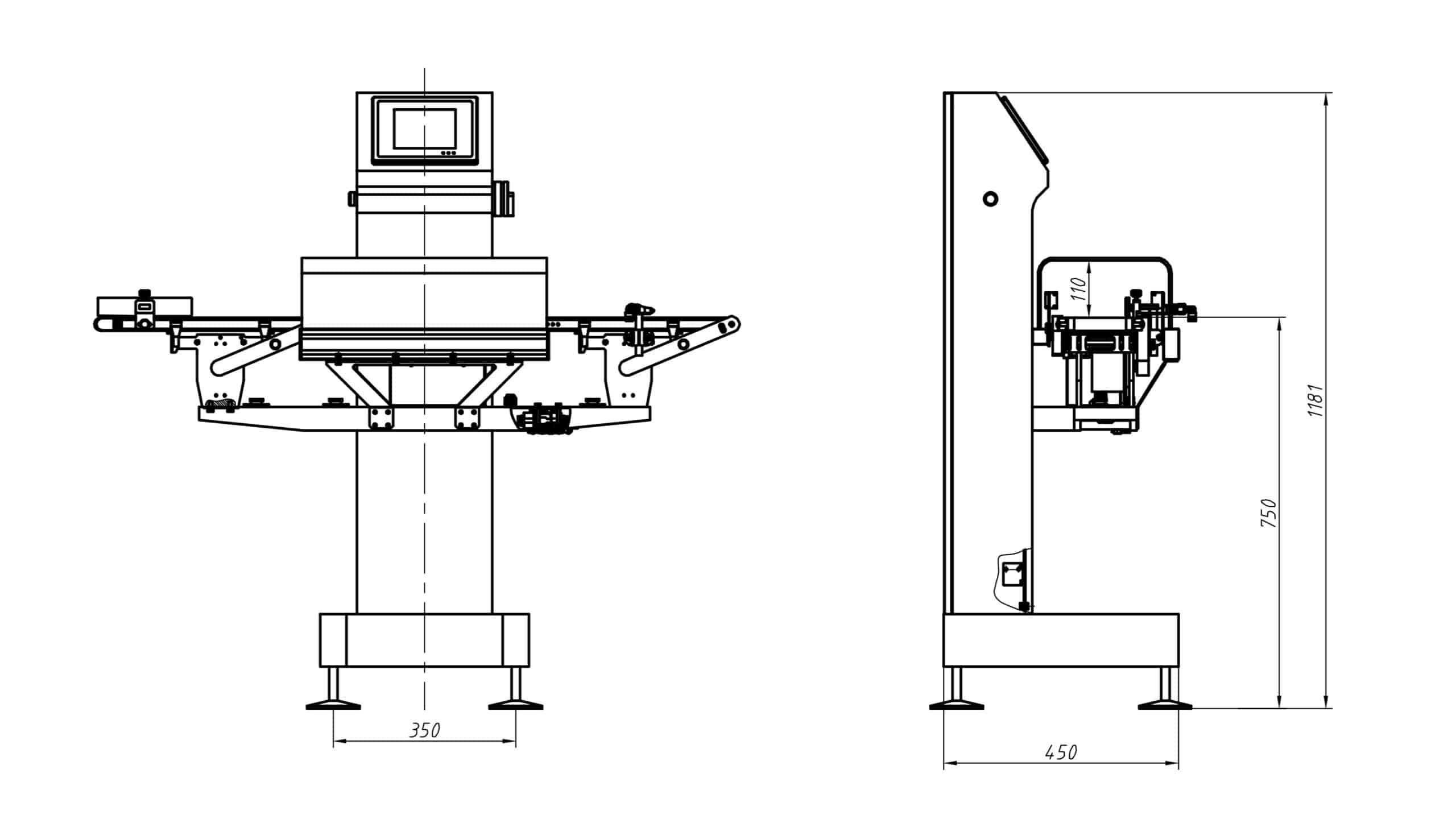

CW200 Check Weigher Layout Drawing
CW200 Check Weigher Layout Drawing
