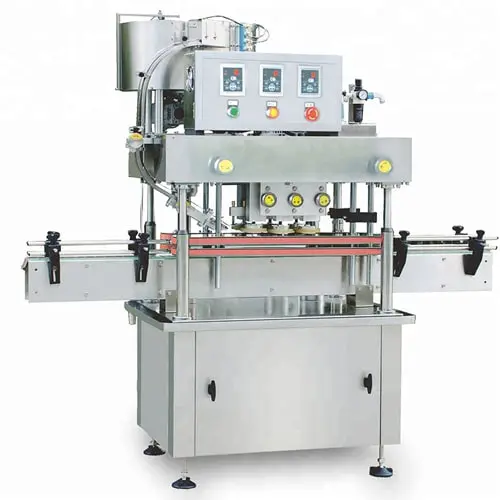

In-line belt wheel capper with a automatic caps feeder and 6 spindles. This machine is a universal capping machine in order to face the current diversity characteristic of the capping machines.
1. When the bottle or the cap changes, there is no need to replace any accessories, just do a little adjustment, then it is ok.
2. The capping qualified rate is high, the speed is fast, and the operation and maintenance are convenient.
3. Since the capping wheel has clutch device, so the cap ensure to be in place without over tightening and damaging the lid.
4. Two sets of bottle-clamp ring belt system is optional, and they are suitable for unstable bottles or tall bottles.
5. This equipment equipped with an aluminum foil rejecting device. The non-aluminum-foil-cap is automatically removed before lowering the caps, ensuring that the aluminum foil cap rate is 100%.
6. The main components of this machine are made of high quality stainless steel and meets GMP requirements.
Power: 220V 50Hz 2Kw
Production Capacity: ≤ 5400 bottles/hour
Applicable Bottle Diameter: φ35mm~φ96mm
Applicable Cap: φ20mm ~ φ65mm (Adjustable, no additional accessories required.)
Weight: 550kg
Dimension: Length × width × height (2400 × 960 × 2100) mm
Manufacturer: Vtops Machinery Co., Ltd.
