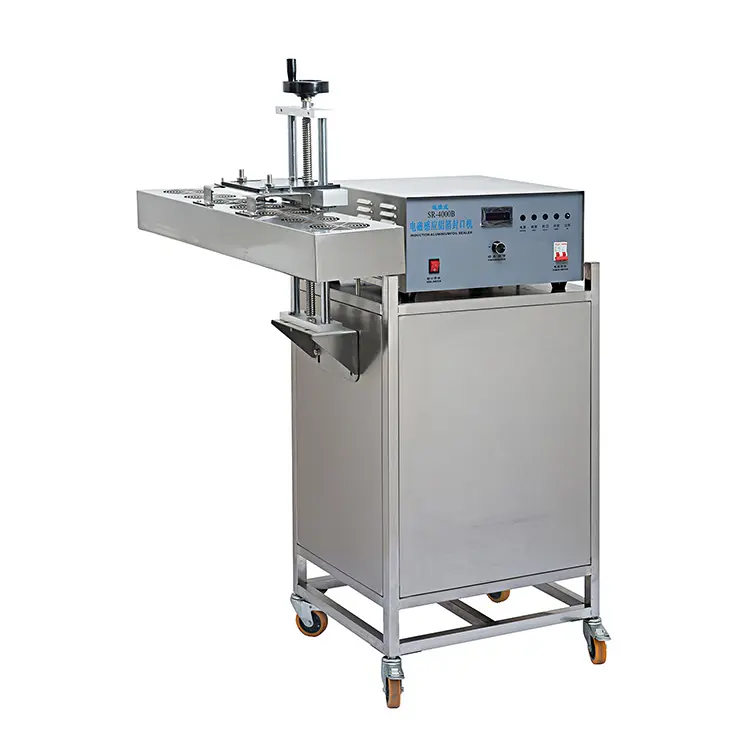

Aluminum Foil Induction Sealing Machine | VTOPS-SR-4000B

(2 customer reviews)

Description

Induction Sealing Machine for Aluminum Foil

Induction sealing machine is the process of bonding thermoplastic materials by induction heating. This involves controlled heating an electrically conducting object (usually aluminum foil) by electromagnetic induction, through heat generated in the object by eddy currents.
Automatic Induction Sealing Machine

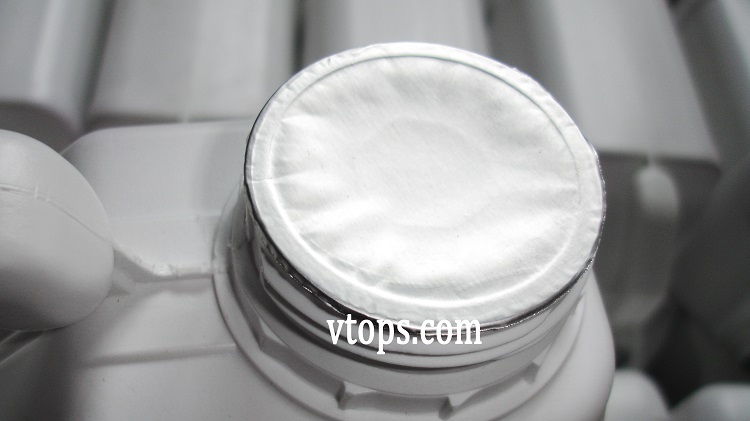

Induction sealing is used in many types of manufacturing. In packaging it is used for package fabrication such as forming tubes from flexible materials, attaching plastic closures to package forms, etc. Probably the most common use of induction sealing is cap sealing, a non-contact method of heating an inner seal to hermetically seal the top of plastic and glass containers. This sealing process takes place after the container has been filled and capped.

Photo Gallery

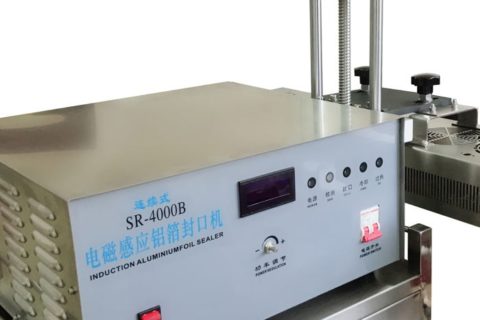

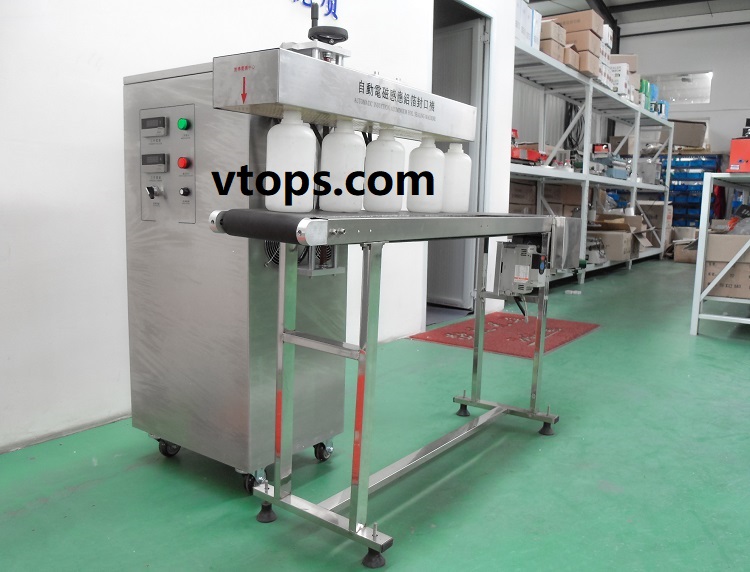

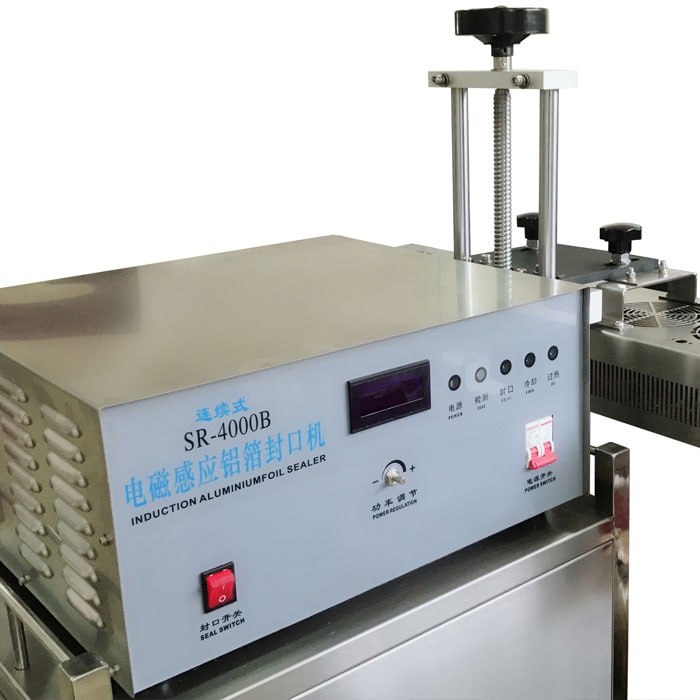

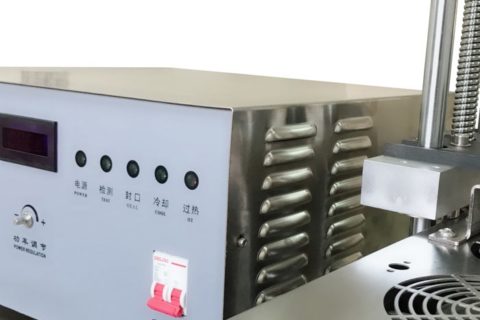

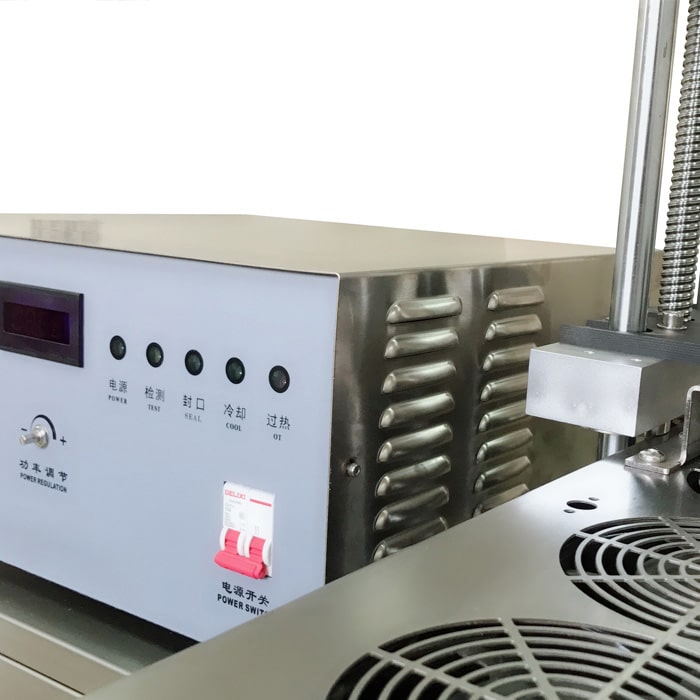

Automatic Induction Sealing MachineOld model Induction Sealing Machine

Features:

1. Over-current and overvoltage automatic protection, safe and reliable.

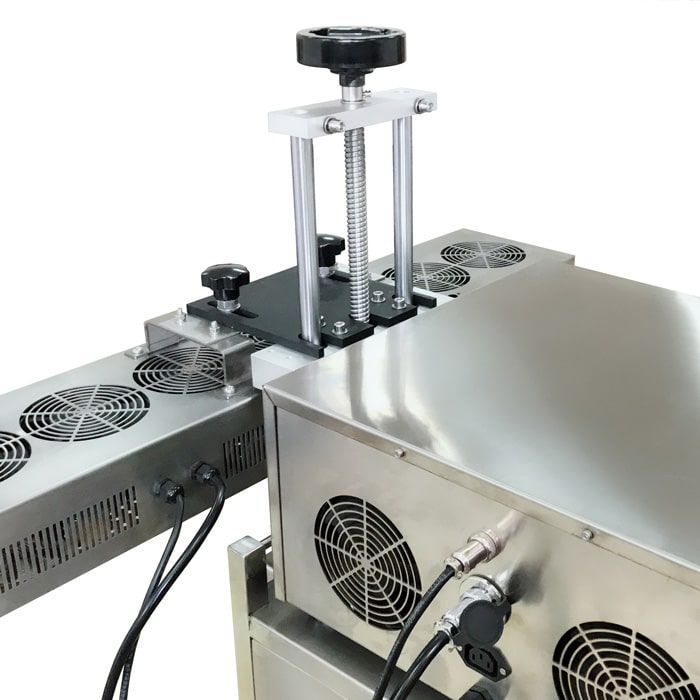

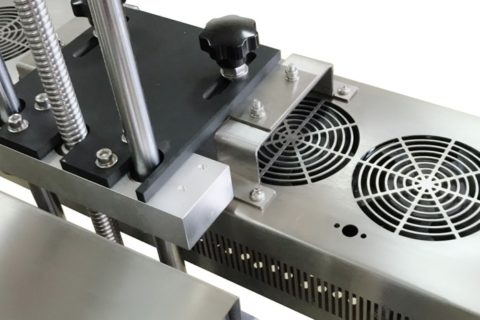

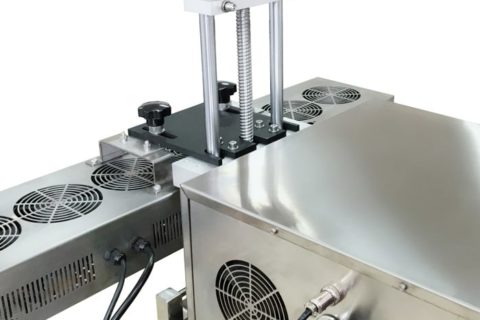

2. Split type with independent lifting frame, air cooling, The performance is close to that of water-cooled machine.
3. All stainless steel molding shell with elegant appearance.

Technical Parameters:

Model VTOPS-SR-4000B
Product Name Induction Sealer Machine
Cooling method Air cool
Voltage AC Single-phase 220V 50/60Hz
Speed Max. 250 bottles/min
Max. Power 4000W
Bottle Diameter 20-80mm, 50-120mm
Bottle Height 0-390mm (adjustable)
Weight 100 kgs
Dimensions 600×450×1310 mm

Precautions for Use:

Here have 11 precautions for use the Aluminum Foil Induction Sealing Machine which are the following:

  • 1. Firstly, all of the Induction Sealing Machine are not suitable for metal containers and metal caps. Moreover, it is also not possible to start the machine on a metal workbench.
  • 2. The plug and pin of the power supply must be tightly connected, and the screws must be tightened.
  • 3. The power cable is a single-phase three-wire power cord. In other words, the three wires are: a live wire, a neutral wire, and a ground wire.
  • 4. For the safety of the operator, the ground of the workplace should dry to maintain insulation.
  • 5. The induction sealing machine equipped an automatic protection function for overheating. When the temperature overheated, the buzzer will beep for a long time and the yellow indicator light of “abnormal protection (PRO. MD.)” is on. In this time, the main power switch should turn off. After the cooling buzzer stops in standby, the machine is available to continue work.
  • 6. During the working process, the operator should check the surface of the induction head to check whether it is overheated.
  • 7. The modle of VTOPS-SR-4000B equipped with a 5A fuse. It is not allowed to replace a fuse larger than 5A.
  • 8. Impact, heavy pressure, and moisture during transportation, storage, and use of the equipment are not allowed.
  • 9. You should stop using the machine if you find any exposed wires before use.
  • 10. In addition, there is high voltage in the control cabinet and the main board is electrified. It is dangerous to open the control cabinet if without authorization.

How to Troubleshoot the SR-4000B Induction Sealing Machine:

As mentioned in our previous article, VTOPS developed an easily replaceable integrated motherboard used in this aluminum foil induction sealer machine.

  • If the induction sealer is under warranty, we will replace the motherboard for you for free.
  • If you have purchased this model of aluminum foil sealer from other distributors, you can also contact us to purchase the motherboard.

This motherboard will be delivered to you quickly by air, without delaying you to make money with the SR-4000B Heat Induction Sealer Machine. And the package size information are following:

  • Dimensions: 50*36*25CM
  • G.W.: 5.2 KGS
