$3,990

Model: VTOPS-M10 Categories: ,

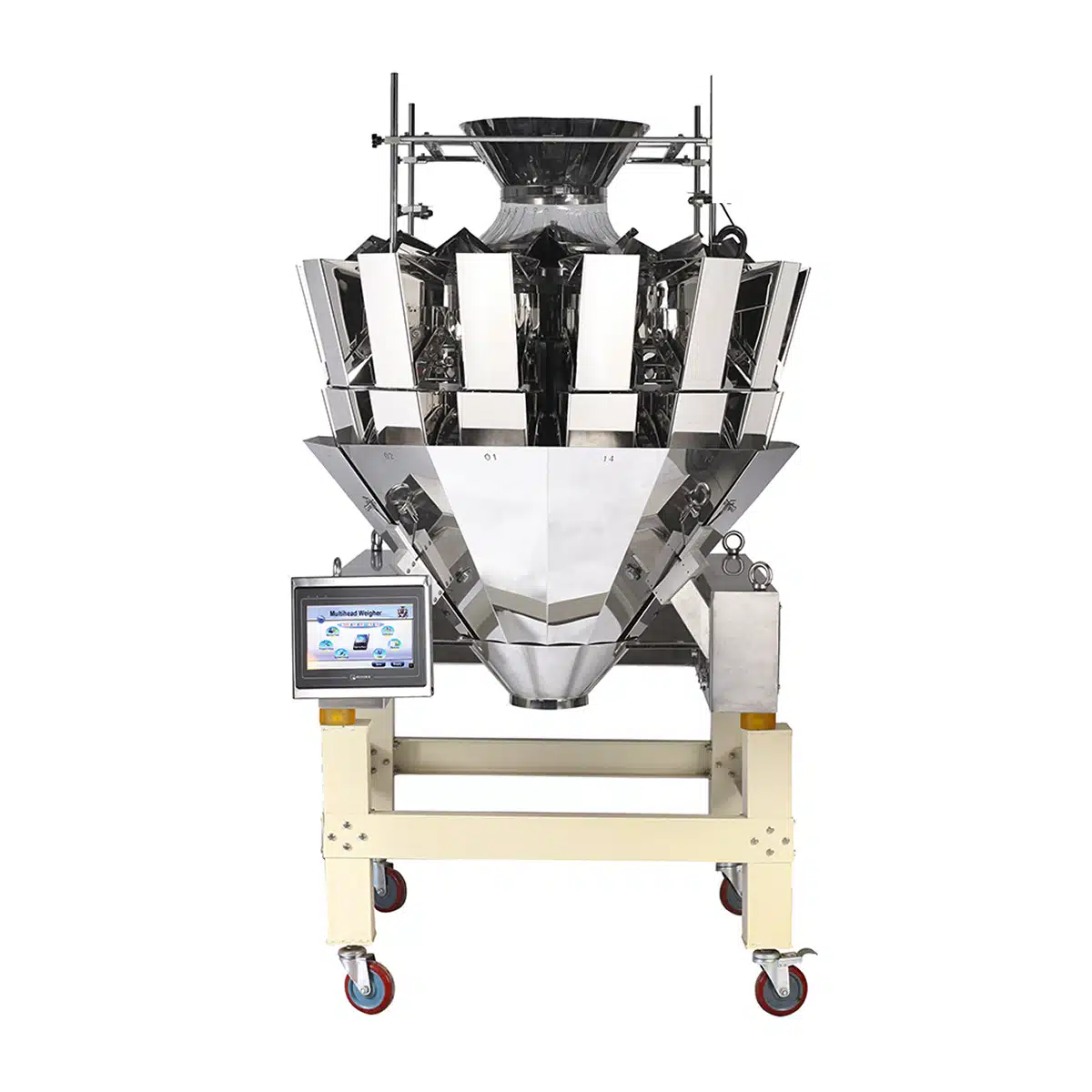

Multi-function Multihead Weigher Weighing Scale Machine is a fast, accurate and reliable weighing filling machine. Usually used for products of granular, slice, roll or irregular shape materials.

Such as candy, seed, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruit, frozen foods, snack food, coffee beans, meatballs and so on.

In addition, the multi-head weigher  using in conjunction with the VFFS machine, PFS machine, or star-wheel conveyor belt to form a faster packaging production line.

Features:

  • All parts are enclosed.
  • Speed adjustment of hopper movement by step motor, no air consumption.
  • Statistical Data-Inspect on screen and via optional printer output.
  • Adopt high precision and high load cell of famous brand, resolution is up to 2 decimal.
  • Program recovery function can reduce operation failures and support multi-segment weight calibration.
  • No products auto pause function can improve weighing stability and accuracy.
  • Linear amplitude can be adjusted independently while running.
  • Many languages available for global markets.

Technical Parameters:

Item M10 M14 M16 M20 M24 M32
Identify Code M10-1-1 M14-1-1 M16-4-2 M20-2-1 M24-2-1 M32-2-1
Quantity of W.H 10 14 16 20 24 32
Mixing Model 2 kinds 3 kinds 4 kinds
Weighing Range (g) 10 - 1000 10 - 1500 10 - 1000 10-1000 5-240 5-240
Accuracy [2] X(0.5) X(0.5) X(0.5) X(0.5) X(0.5) X(0.5)
Max. Speed [3] 60 100 120+ 65*2 60*3 60*4
Hopper Volume 1.6L or 2.5L 1.6L or 2.5L 1.6L 1.6L 0.5L 0.5L
HMI 7" Screen 7" Screen 10.1" Screen 10.1" Screen 10.1" Screen 10.1" Screen
Driving System Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor Stepper Motor
Voltage AC 1P 220V AC 1P 220V AC 1P 220V AC 1P 220V AC 1P 220V AC 1P 220V
Power 1.0 Kw 1.5 Kw 2.0 Kw 2.0 Kw 1.5 Kw 2.5 Kw
Machine Weight 380 KGS 490 KGS 650 KGS 850 KGS 440 KGS 600 KGS
Dimensions 160*110*111cm 170*110*130cm 186*120*154cm 195*165*130cm 180*125*111cm 210*150*115cm
Optional Dimple Plate Dimple Plate Dimple Plate Dimple Plate Dimple Plate Dimple Plate
