Linear Type Inline Three Head Auger Filler | VTOPS-P3H-L

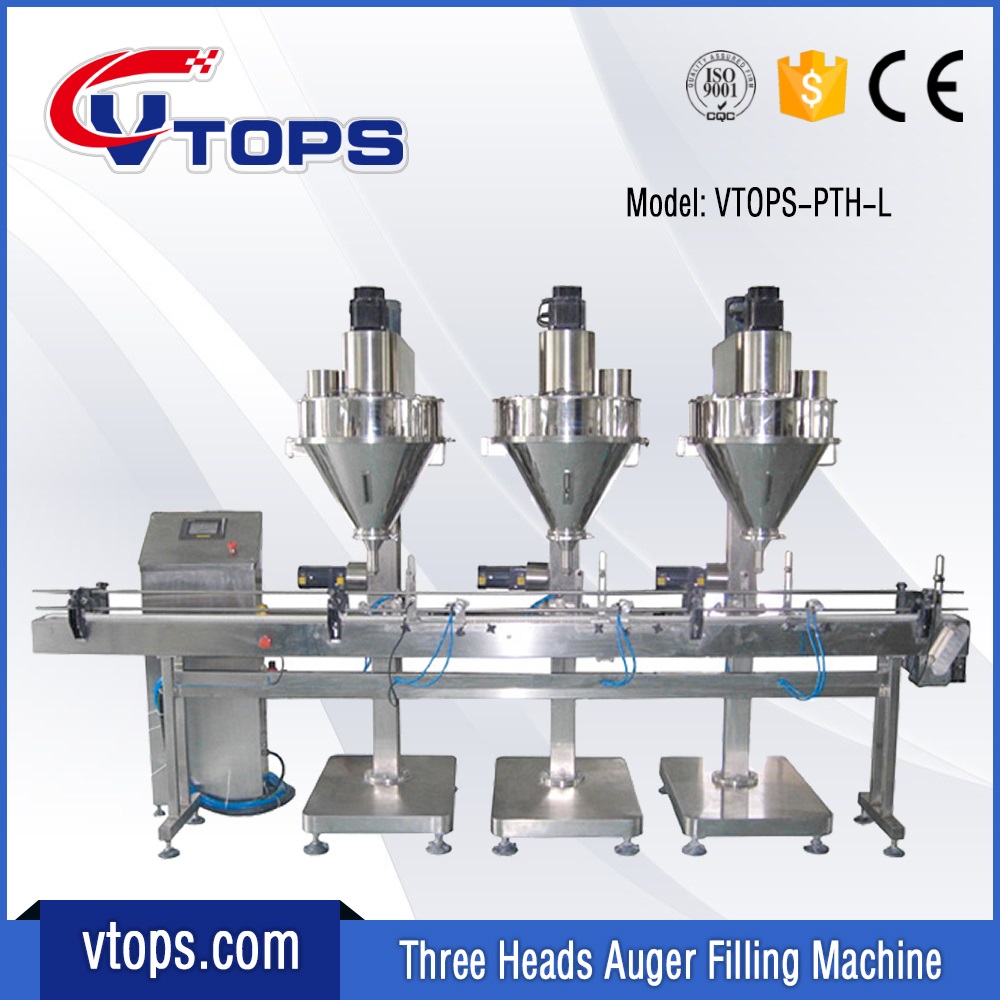

Linear Type inline three head auger filler have three separate auger filling head. There are mounted on the top of conveyor plate in the same line.
When bottle reaches to the first filling station, it will be held by the pneumatic bottle holder. Immediately it will be sensed by the bottle sensor as soon as it gets signals from sensor magnetic clutch starts to rotate which is mounted on auger shaft.
It will fill the desired amount of powder to the bottle through auger, where rotation time is previously saved in PLC control. After filling of first bottle pneumatic piston goes back and release the first bottle to move on conveyor, by the same time second bottle also moves along with the first bottle in empty condition. In second filling head same operation will be performed but this time second bottle get filled and first bottle moves further for next operation. The main advantage of this machine is Pneumatic bottle holding system is directly connected with Auger rotation, so till bottle get filled with powder as per set value pneumatic system will not going to release the bottle.

Technical Parameters:

  • Model: VTOPS-P3H-L
  • Metering Range: 1g-2500g
  • Filled Error: ≤ ±1%
  • Measurement Method: Auger Filler
  • Filling Speed: 0-90 fills/min
  • Filling Motor: Servo Motor [3]
  • Auger Height Adjustable: Yes [3]
  • Monitorable Hopper: Yes [3]
  • Easy Clean Hopper: Yes [3]
  • Hopper Volume: 50 Liters
  • Machine Weight: 760 kg
  • Power: AC Three-Phase 380V 50/60HZ 4.8KW
  • Dimension: 3750*1000*2100mm
  • Manufacturer: Zhengzhou Vtops Machinery Co., Ltd.
