Fully Automatic Paste Filling Machine with 4 Nozzles

Automatic paste filling machine is a high viscosity liquid piston filling machine. The paste filling machine widely used in the filling of both high viscosity liquid and water-thin liquid. Such as: honey, detergent, washing liquid and so on.

Automatic Paste Filling Machine Contains:

1. Features:

  • 1) LCD Touch screen and PLC;
  • 2) Pneumatic components are brand of AirTAC;
  • 3) Piston type filling;
  • 4) All 304 stainless steel, optional 316 stainless steel;
  • 5) Equipped a conveyor belt with 2 meters;
  • 6) It is adjustable of filling volume and filling speed;
  • 7) Nozzles ensure anti-drip free operations;
  • 8) Will skip filling if no bottle;
  • 9) Optional range: 20-200ml 50-500ml 100-1000ml 260-2600ml 500-5000ml;
  • 10) Optional two nozzles, four nozzles, six nozzles, eight nozzles to meet your speeds;
  • 11) GMP compliance;

2. Typical Application:

  • Use for filling materials of liquid, viscous liquid and paste. Such as: mineral water, juice, detergent, sauce, salad, butter, margarine, ketchup, jams, cream, honey, shampoos, etc.
  • Suitable for various containers. Such as: bottle, jar, can, etc.

3. Details Photos

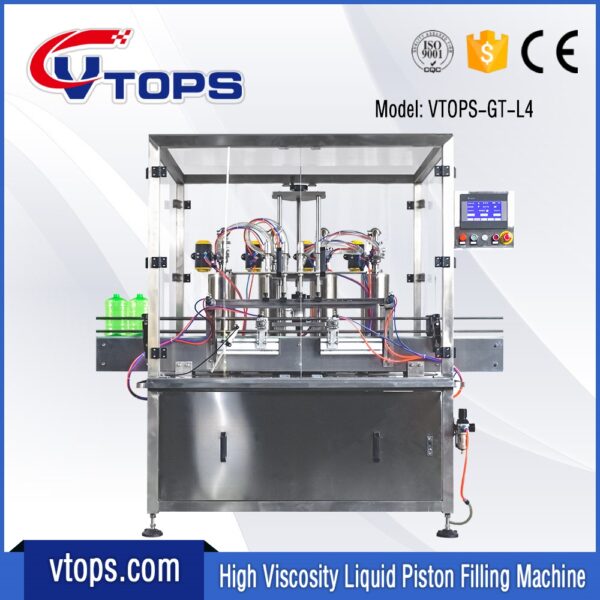

Fully Automatic Paste Filling Machine
Fully Automatic Paste Filling Machine

4. Parameters:

Model VTOPS-GT-L4
Brand VTOPS
Number of Nozzle 4 (customizable of 6, 8, 10 nozzles)
Filling Capacity 50 – 500 ml, 100 – 1000 ml, 500 – 3000 ml
Fill Speed 5-15 fills / minute / nozzle
Contact Materials SUS 304
Measurement Accuracy ≥ 99%
Contained Conveyor Belt 3 meters
HMI LCD Touch Screen
Control System PLC
Voltage AC Three-phase 380V
Power 1.0 Kw
Air Pressure 0.5-0.7 mpa
Dimensions 2000*1200*1800 mm
Machine Weight 500 kgs
Manufacturer Zhengzhou Vtops Machinery Co., Ltd.

5. Working Video:
