Description
Vtops Tilted Type Bucket Elevator Inclined Conveyor Feeder
A tilted type bucket elevator is an inclined mechanism for hauling flowable granular bulk materials (most often grain or fertilizer). Usually used as auxiliary equipment for granule filler machine.
It consists of:
- 1. Storage Hopper to contain the material;
- 2. A belt to carry the buckets and transmit the pull;
- 3. Motor to drive the belt;
1. Features:
1. All parts in contact with the material are made of food grade 304 stainless steel.
2. Technical Parameters:
| Model | F220B-1 | F220B-2 | F330B |
|---|---|---|---|
| Bucket Width | 220mm | 220mm | 330mm |
| Lifting Height | 1.9 meter | 2.5 meter | 2.5 meter |
| Applicable | 2DC-2K | 4DC-2K | 2DC-6K; DGS-50K |
| Stainless Steel | All 304 | ||
| Voltage | AC Single-phase 220V | ||
| Power | 400 w | 400 w | 750 w |
| Machine Weight | 190 KGS | 210 KGS | 250 KGS |
| Manufacturer | Zhengzhou Vtops Machinery Co. Ltd. | ||

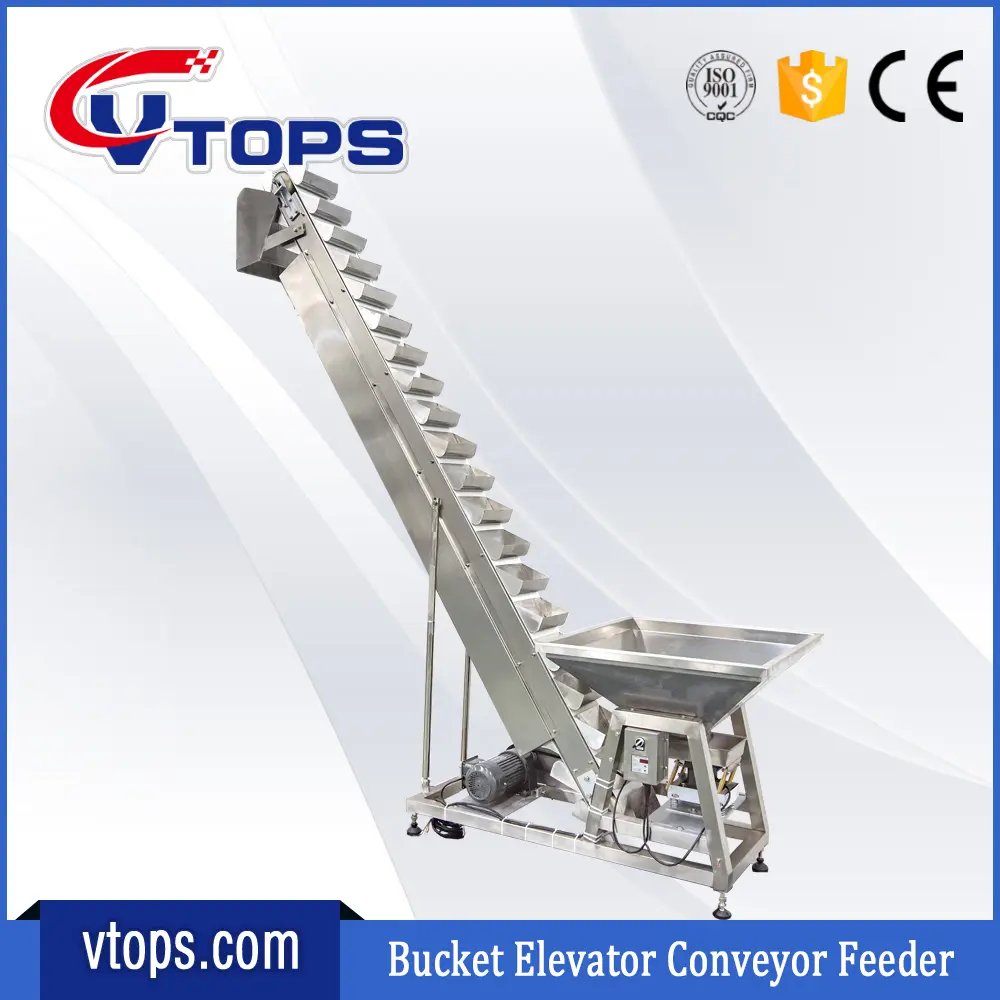

3. Photos:
