Semi Automatic Liquid Filling Machine | VTOPS-NY

This semi automatic liquid filling machine driven by cylinder. Piston made from stainless steel materials with three-way valve control the flow of liquid and magnetic reed switch controlling cylinder itinerary can regulate filling volume.This piston filling machine is suitable for all liquid without particles.

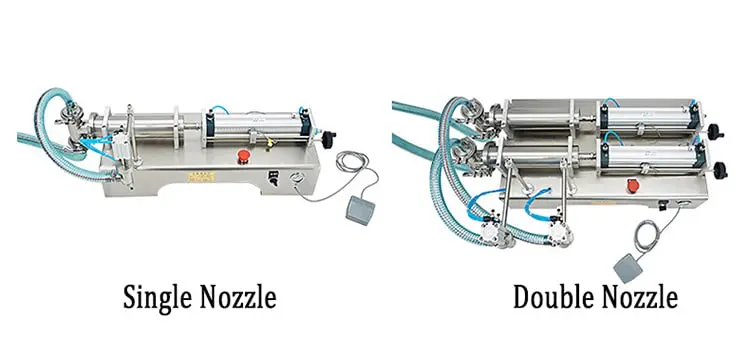

Usually, the semi-automatic liquid filling machine divided into single filling Nozzle or double filling nozzle according to the needs of different customers. The photo is following:

Contains:

1. Features:

  • 1). High quality cylinder as driven part, such as AirTAC cylinder, E.MC cylinder etc.
  • 2). Easy to install, disassemble and clean.
  • 3). High quality O-ring makes working life longer.
  • 4). All machine body is made of stainless steel. It is easier to clean and more hygeian.
  • 5). The filling accuracy greater than 99.5%.
  • 6). Filling range is wide and adjustable.
  • 7). This filling machine can run automatically or operate by a pedal.
  • 8). A sucking tube or a hopper is optional.
  • 9). Advanced anti-leaking technology to keep the filling head from leaking.

2. Technical Parameters:

Model L-300A L-300B L-500A L-500B L-1000A L-1000B
Type Pneumatic
Automaticity Semi-automatic
Filling Range 20-300ml 50-500ml 100-1000ml
Filling Nozzle Single Double Single Double Single Double
Filling Speed 10-20 bottles/min
Dimension(cm) 86*30*30 86*50*30 95*30*30 95*50*30 110*30*30 110*50*30
Net weight 25 Kg 28 Kg 30 Kg 33 Kg 35 Kg 39Kg
Air Pressure 1.5Hp air compressor ; 0.4-0.6mpa air pressure
Voltage AC Single-phase 220V
Application Liquid and paste such as shampoo, oil, honey, toothpaste, face cream, ink, paint, yogurt etc.
Note You can choose a suitable model according to your product and filling range. We will equipt a hopper or a tube for the machine accordingly. The hopper has to be paid in addition
