Description

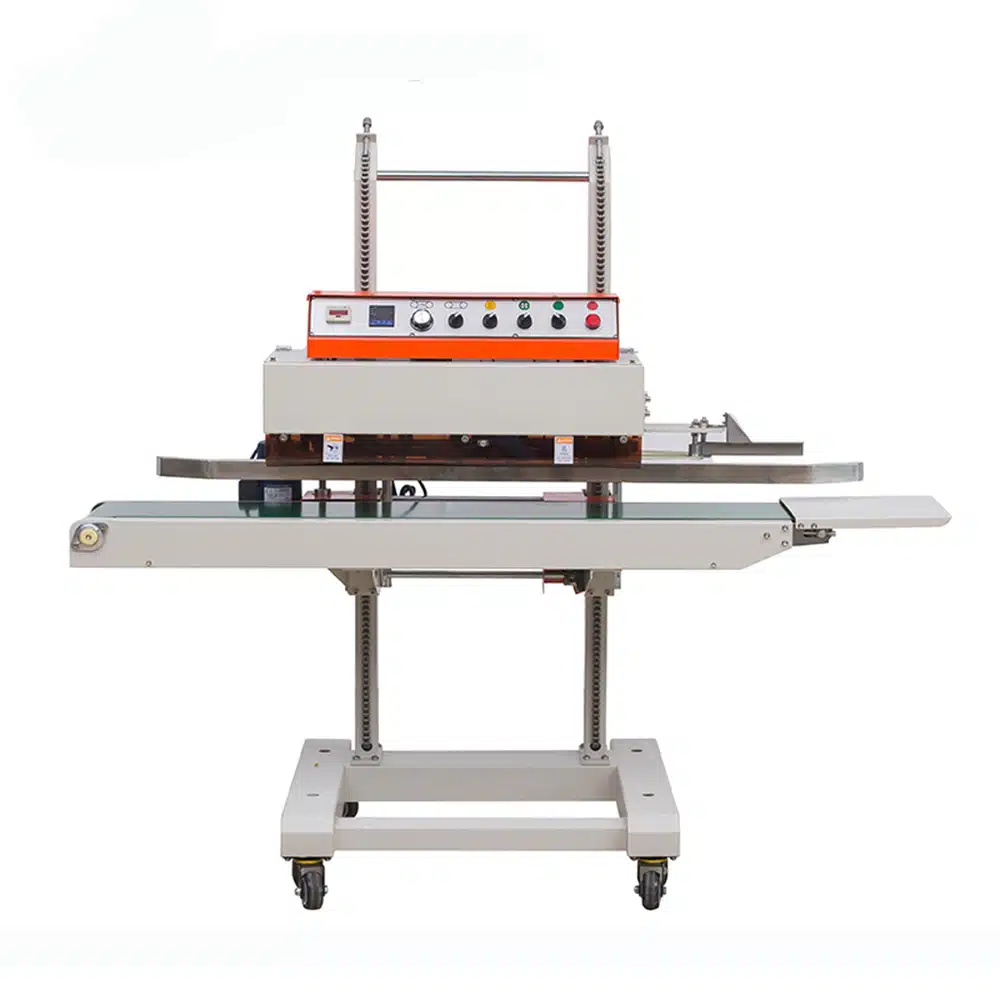

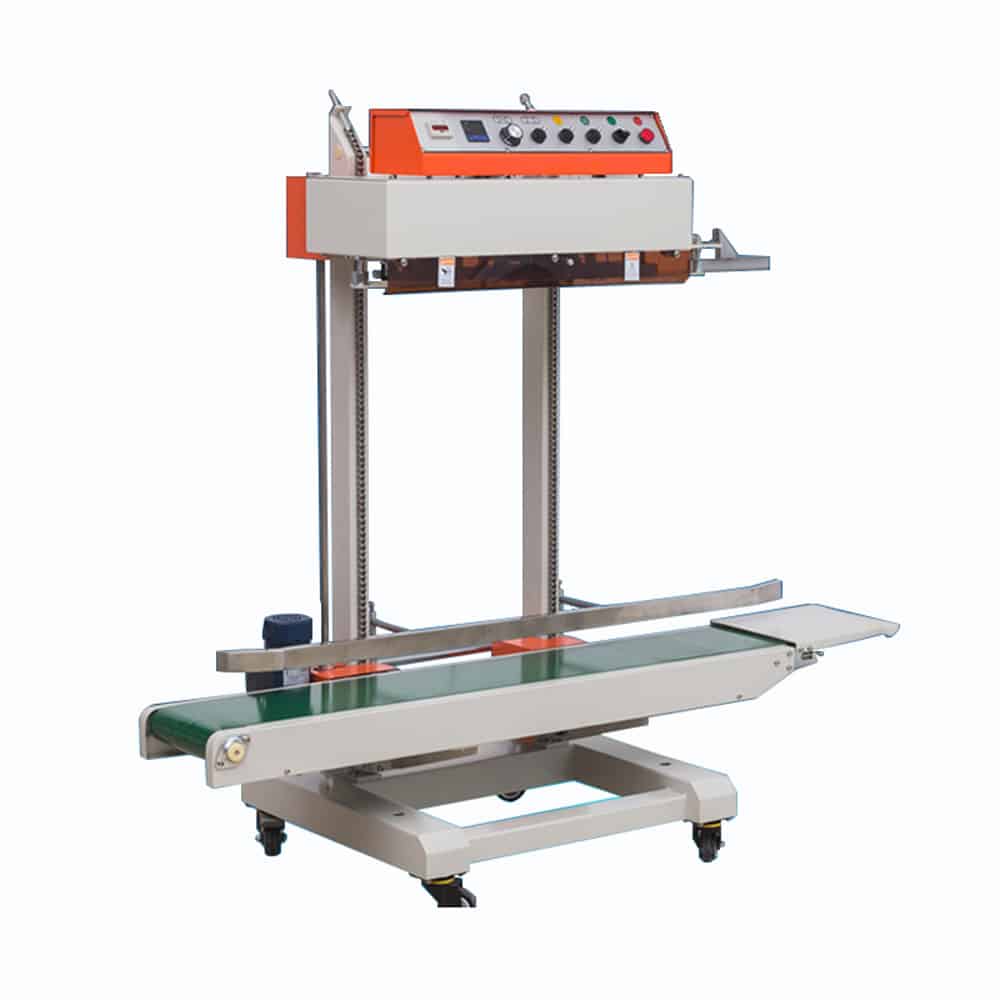

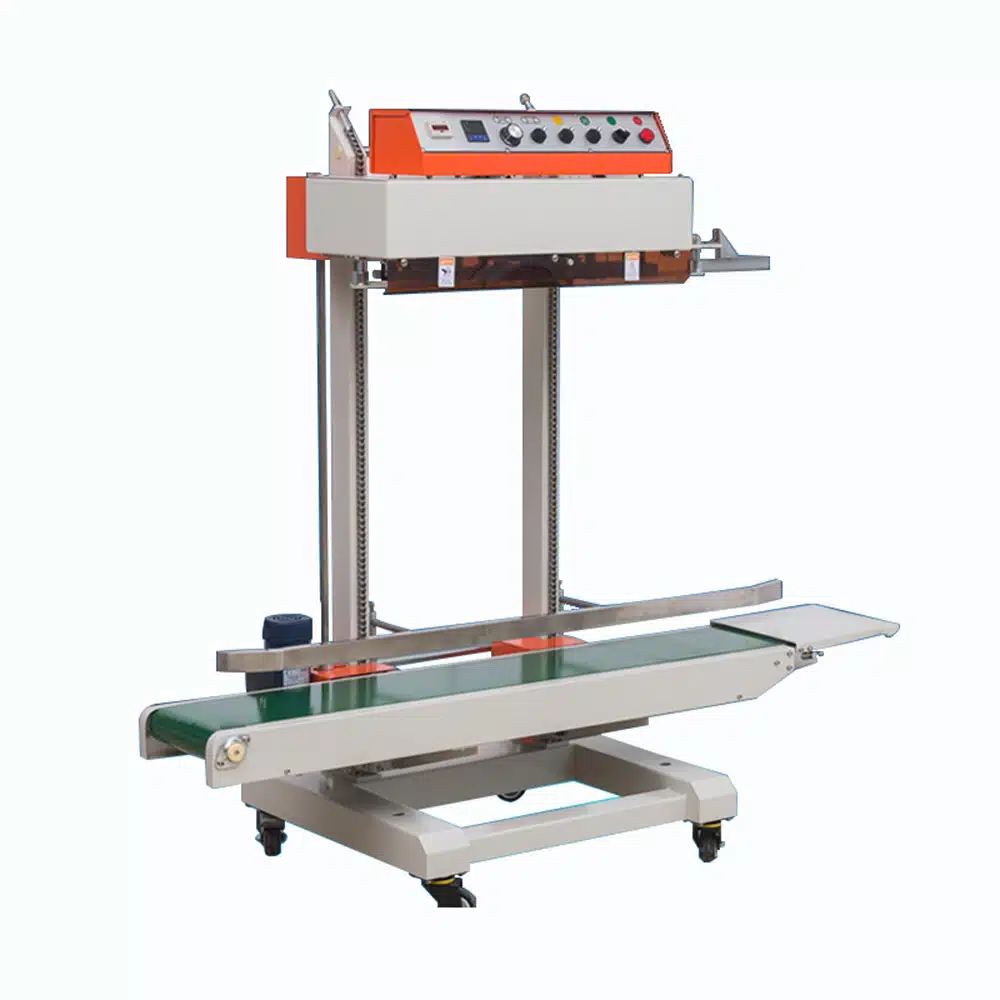

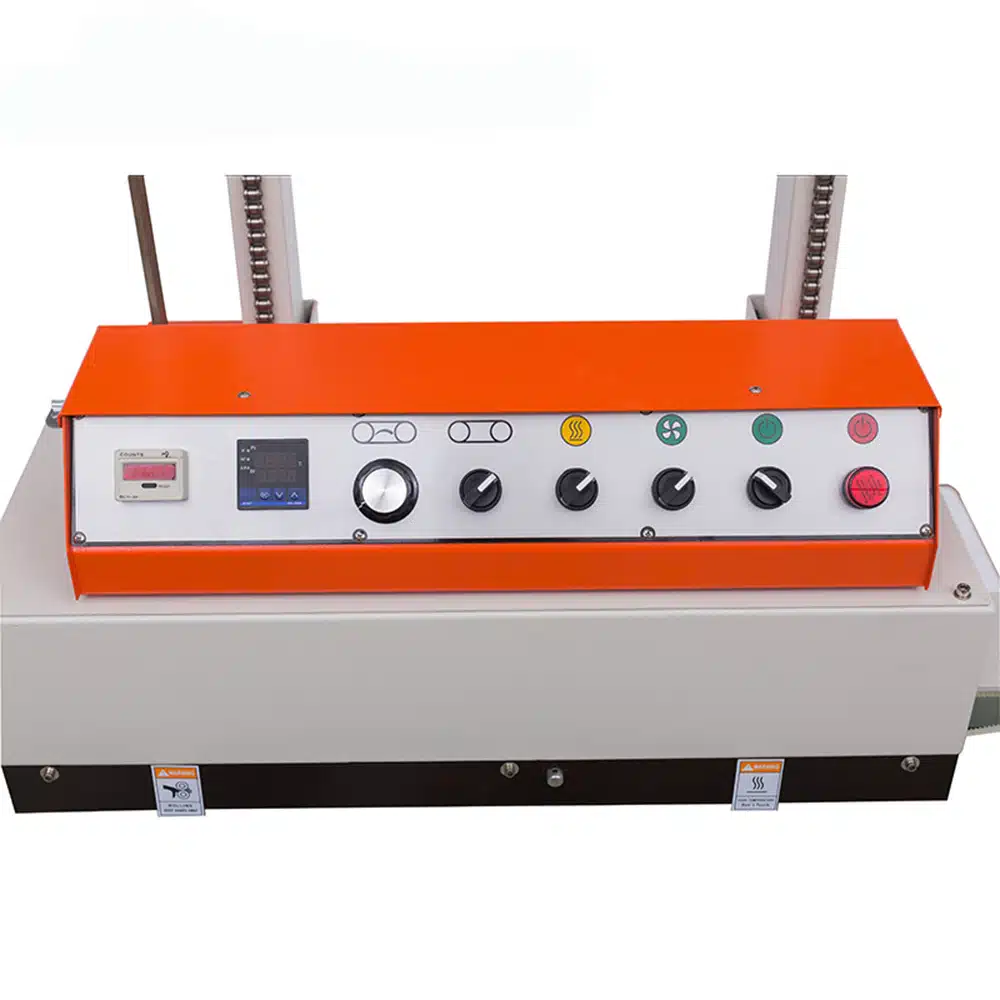

The QLF-1680 automatic vertical heat sealer bag sealing machine is used for sealing large sized bags up to a height of 80cm, such as fire wood, grains, flour, produce, soil, and more!

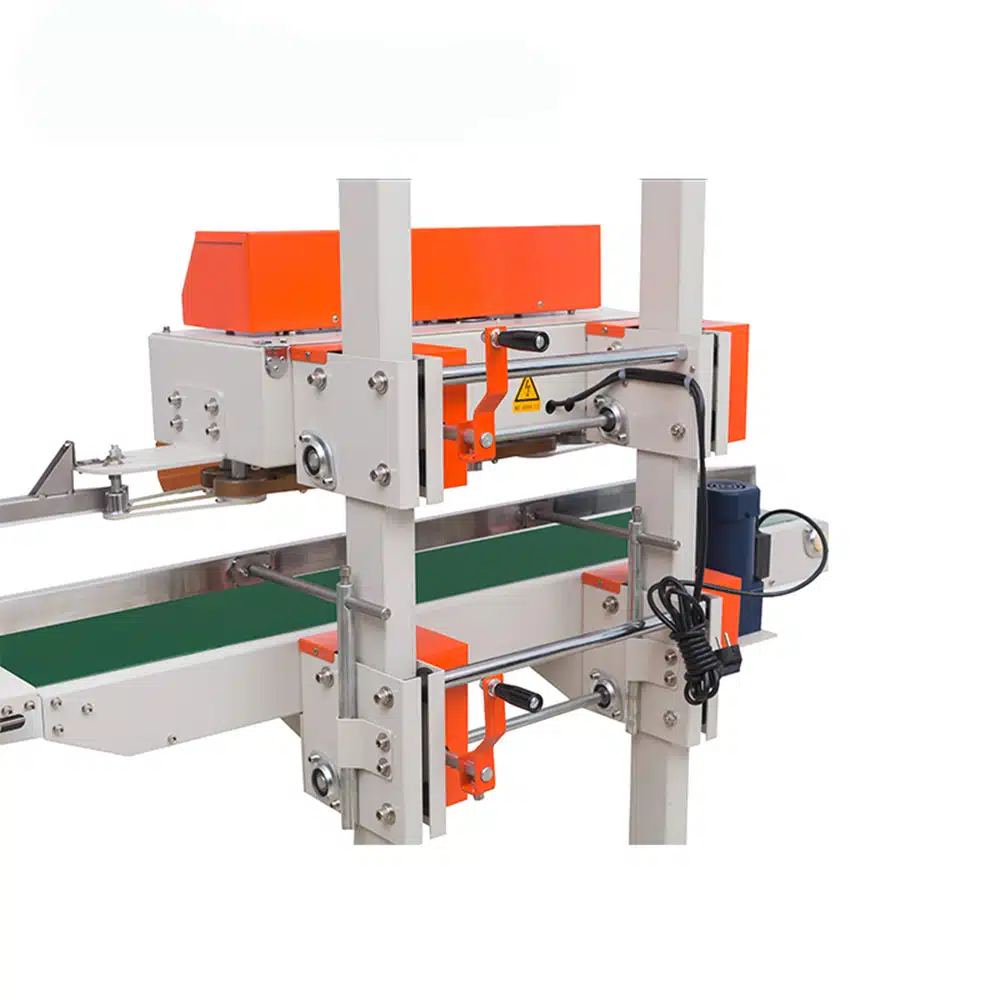

QLF-1680 heat sealing machine taking double cylinders drive as the stitching power. Adopts time replay to control the bag sealing, sealed cooling, accurate and adjustable. Suitable for big bag firm sealing in the chemical industry, food, medicine, and cosmetics.
Features

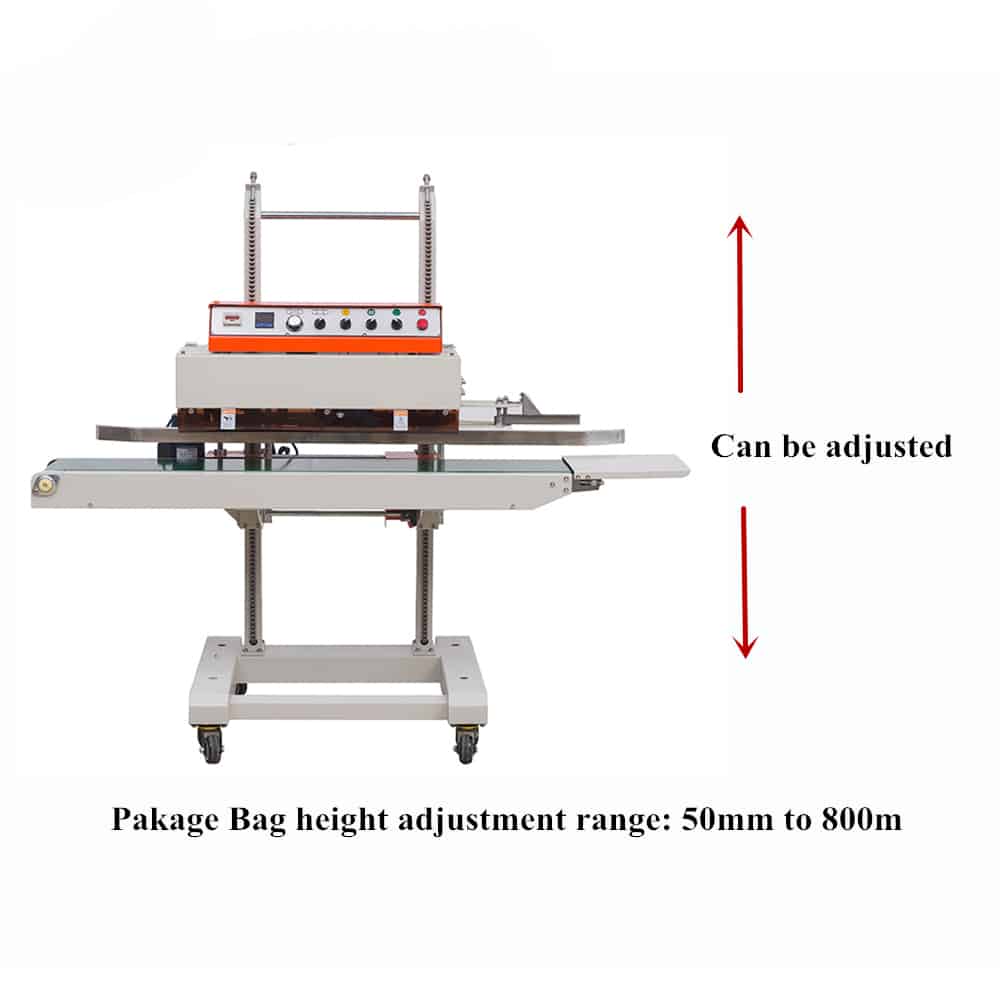

- Sealing height is adjuatable from 50mm to 800mm.
- Maximum load-carrying weight is 15 kg. Available customized up to 25 kg weight.
- Print Embossed Characters on the Bag up to 2 Lines at 20 Characters Per Line.

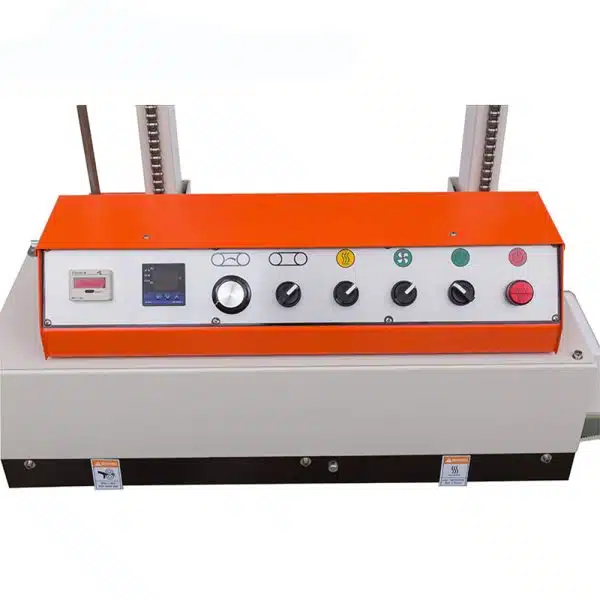

- Unique Adjustable Constant Temperature System!
- Easy To Set Up, Use, and Maintain!
- Two Year Limited Manufacturer Parts Warranty!
- Basic Lettering / Numbering Imprinting Wheels Included!
- Durable Construction – Top Customer Reviews In Its Class!
Product Paramenters
| Model | FRD-1000 | FRD-1200V | QLF-1680 |
|---|---|---|---|
| Photo |
|
|
|
| Cost | |||
| Working Speed | 0-12m/min | 0-12m/min | 0-10m/min |
| Sealing Width | 12mm | 12mm | 10mm |
| Temperature Range | 0~300 ℃(adjustable) | ||
| Sealing Height | Horizontal | 80-600mm (Adjustable) | 50-700mm (Adjustable) |
| Max Loading | 5 Kg | 10 Kg | 15 Kg |
| Heating Power | 400W | 500W | 400W*2 |
| Voltage | AC 220V 50/60Hz | ||
| Power | 750W | 1355W | 1000W |
| Machine Weight | 25Kg | 45Kg | 180Kg |
| Machine Size | 92*37*32cm | 137*58*120cm | 170*75*160cm |
Reviews
There are no reviews yet.
