Sale!

Continuous Vacuum Gas-filled Heat Sealing Machine | VTOPS-LF1080

Continuous Vacuum Gas-filled Heat Sealing Machine | LF1080

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

SKU LT-1080 Category Sealer Tags Band Heat Sealer, Continuous Sealer

Description

Download

Reviews

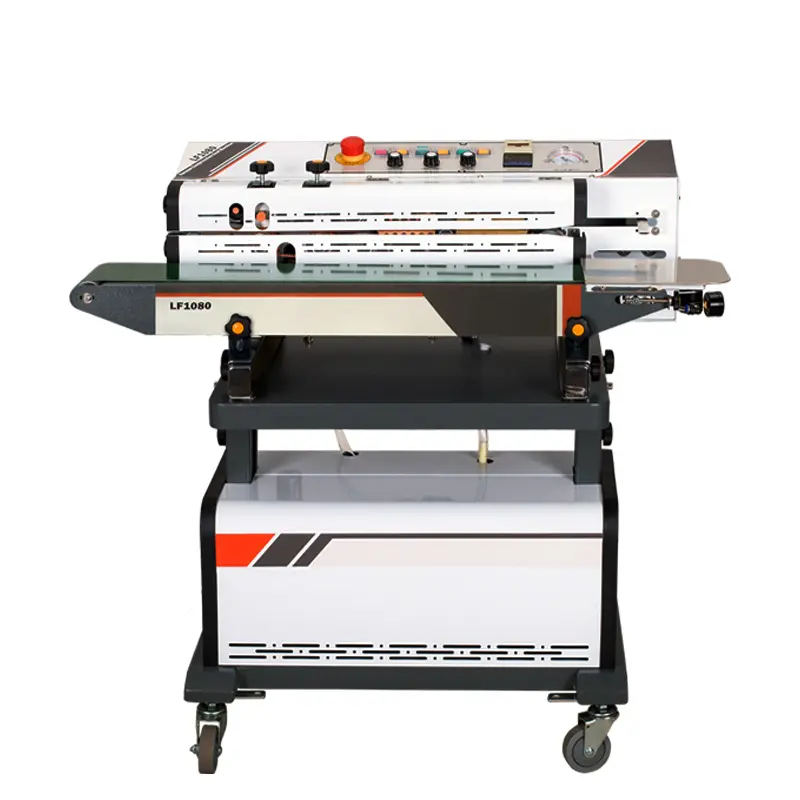

Continuous vacuum gas-filled heat sealing machine is equipped with continuous conveying, vacuum, gas-filled (such as nitrogen or other gases), sealing, coding all in one set machine.

This machine with simple and novel structure, beautiful appearance, complete function, high degree of automation, can greatly reduce the labor intensity of the operator.

Features:

1. Heating block & cooling block of 12mm to ensure the quick and perfect sealing.
2. Driving wheel processed with high precision.
3. High-quality solid rubber tensioning knob, wearproof.
4. Unibody gear box fixed to flank, more steady.
5. High-quality polyformaldehyde gear with high- strength injection molding, running more smooth and low noise.
6. Patent to replace the sealing belt.
7. Shell on the machine, to ensure the operator safety.
8. continuous conveying device is easily adjusted according to the size of pouches.
9. Elegant panel, easy operation, variable speed conveyor.
10. Gas-filled sealing is optional, and the gas filling time is adjustable.
11. Vacuum pump on continuous vacuum gas-filled heat sealing machine.
12. Standard configuration the filter of brand AirTac.

Technical Parameters

Product Name:Continuous Vacuum Gas-filled Heat Sealing Machine

Model	LF1080A	LF1080B	LF1080C
EXW Cost	US$1,699	US$1,999	US$1,399
Vacuum Sealing
Gas-filled^[1] sealing
Date Coder
Sealing Speed	0-12m/min
Sealing Width	12mm
Control Tempt.	0-300℃ (adjustable)
Film Thickness	≤0.08mm
Convery loading	≤ 3KG
Voltage	AC Single-phase 220V
Power	1405 w
Machine Weight	85 kg
Machine Size	1025450(940+140)^[2]mm
Manufacturer	Zhengzhou Vtops Machinery Co Ltd

Remarks:

[1] The gas-filled inflation function requires an external air source.
[2] 140mm is adjustable.

1 review for Continuous Vacuum Gas-filled Heat Sealing Machine | LF1080

Rated 5 out of 5

Thomas Lopez – December 15, 2020

Received in good condition. Was delivered on time.
The manual is a bit confusing, it needs to be updated, grammar-checker, and written in correct English.
