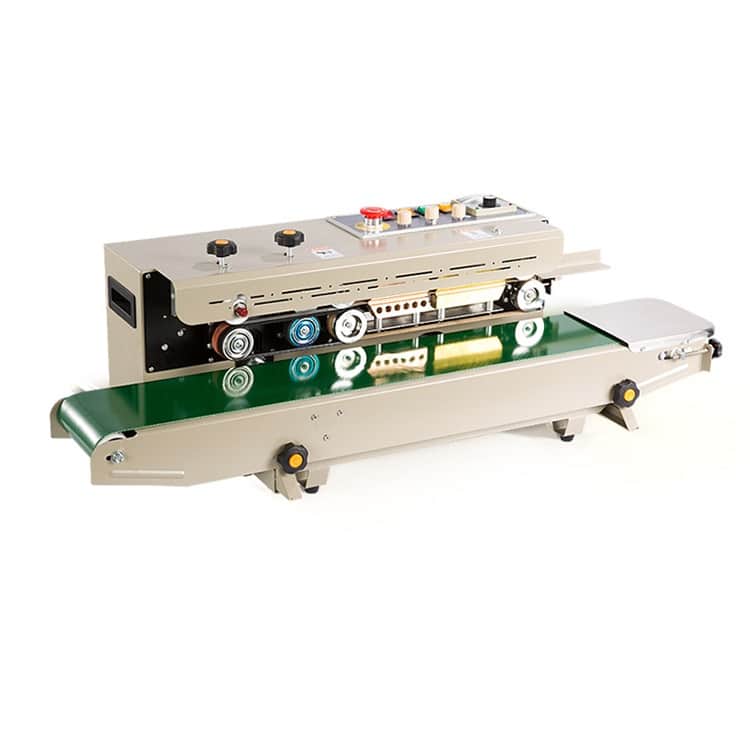

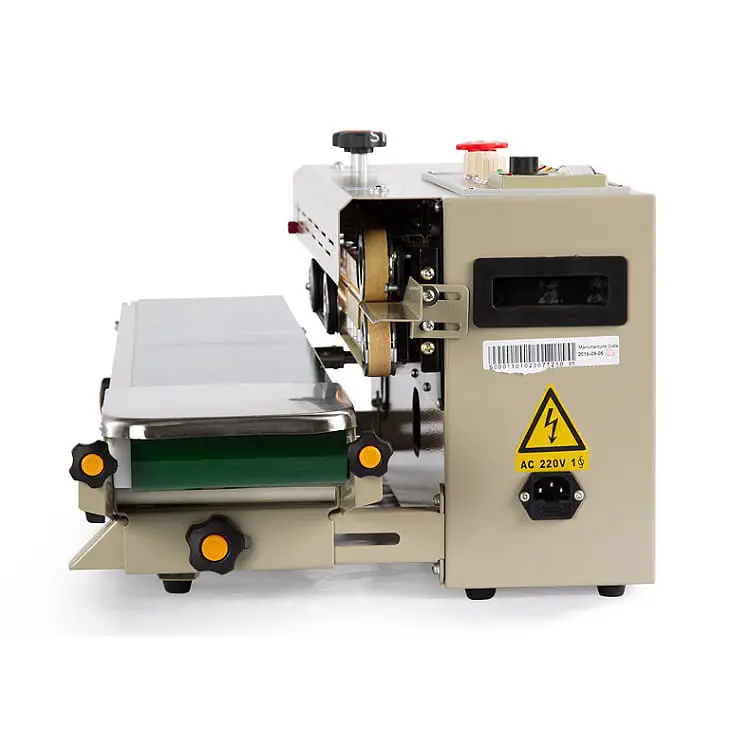

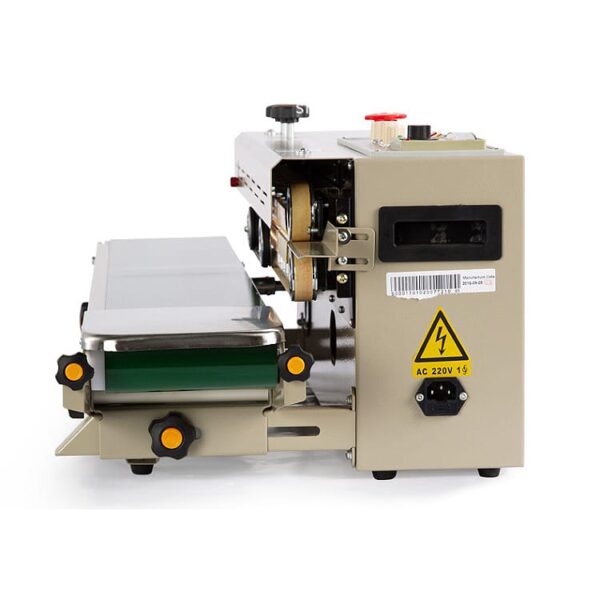

High quality FRD-1000 Continuous Pouch Sealing Machine adopts electronic constant temperature control and automatic conveying device, can control different shapes of plastic film bags, can be used in all kinds of packaging line, the seal length is not limited.

1. Application:

• Continuous Band Sealing with Adjustable Speed
  Equipped with an automatic conveyor and stepless speed control, the machine provides continuous sealing at speeds up to 0–12 m/min, reliably handling medium and high throughput sealing operations.
• Electronic Constant Temperature Control
  Advanced constant temperature system ensures stable heat distribution across sealing belts, delivering consistent, strong seam quality for plastic and laminated bags.
• Flexible Vertical & Horizontal Operation Modes
  This model supports both vertical and horizontal sealing configurations (2-in-1), making it adaptable for different bag orientations and production line layouts.
• Versatile Material Compatibility
  Capable of sealing a wide range of bag materials including Kraft paper, aluminum foil, tea bags, and general food packaging bags, supporting diverse packaging needs.
• Adjustable Temperature & Seal Width
  Temperature can be finely tuned from low to high (0–300 ℃) to match different materials and film thicknesses, while the sealing width ensures strong, uniform seams across applications.
• Built-in Coding & Printing Support
  Integrated ink wheel printing enables batch coding and production date marking during sealing, simplifying traceability without additional equipment.
• Durable and Compact Construction
  Designed with a robust frame and compact footprint to fit into packaging lines easily, while handling sealed materials up to 5 kg on the conveyor.
• Easy Integration into Packaging Lines
  Standardized interfaces and conveyor design make this machine easy to connect with upstream fillers (e.g., auger fillers) and downstream checkweighers or labelers, enabling smooth continuous packaging workflows.
• Simple Operation & Maintenance
  User-friendly controls allow quick setup and adjustments, and routine maintenance is simplified thanks to accessible film tracks and conveyor mechanisms.
• Wide Industry Application
  Suitable for use in food, pharmaceutical, chemical, aquatic and electronics industries, especially where high-quality seals and continuous production performance are required.

2. Technical Parameters:

Model	FRD-1000	FRD-1200V	QLF-1680
Cost
Working Speed	0-12m/min	0-12m/min	0-10m/min
Sealing Width	12mm	12mm	10mm
Temperature Range	0~300 ℃(adjustable)
Sealing Height	Horizontal	80-600mm (Adjustable)	50-700mm (Adjustable)
Max Loading	5 Kg	10 Kg	15 Kg
Heating Power	400W	500W	400W*2
Voltage	AC 220V 50/60Hz
Power	750W	1355W	1000W
Machine Weight	25Kg	45Kg	180Kg
Machine Size	92*37*32cm	137*58*120cm	170*75*160cm
[1]: The vertical frame stand and power transmission shaft are included. [2]: The maximum is 0.35mm on two layside.

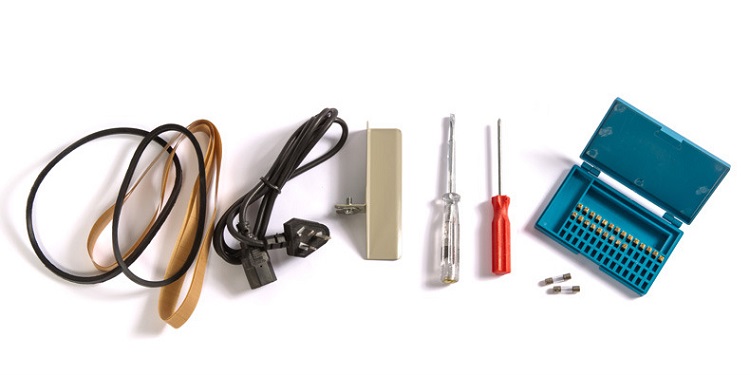

3. Tools and Parts:

* The above parts in photo are free with the Continuous Pouch Sealing Machine.

How to change date on printing wheel?

→A: Use a corss screwdriver to unscrew the screw head.
→B: Unscrew the top screw, the screw does not need to take off, you can unscrew.
→C: Lift the wheel by hand, slowly remove the wheel.
→D: Remove the embossing wheel.
→E: Wheel and wrench.
→F: With the wheel wrench unscrew the lid.
→G:Unscrew the lid, took out the words,Change the words you need.

How to convert Continuous Band Sealer Sealing Machine of FRD-1000-2 into Vertical Style?

*Notes: The sealing height of Vertical Style FRD-1000-2 is below 25 cm. If the sealing height is between 20 cm and 60 cm, please visit: Vertical Continuous Band Sealer Machine.
