50 KG Bag Packing Machine | Woven Bag Bagging Packing Machine
50 kg bag packing machine is a new generation of intelligent weighing filling machine developed by Zhengzhou Vtops Machinery Co Ltd. And it utilizes three-speed of slow, middle, fast for weighing filling. The machine filling weight is adjustable from 5 KGS to 50 KGS without any tooling. Such as the common packing weights of 5 kg, 10 kg, 20 kg, 25 kg, 50 kg are available.
According to the packaging materials, it can be divided into 50 kg powder packing machine and 50 kg granule packaging machine. This machine is mainly used to fill materials into bags, such as open bags or woven bags.

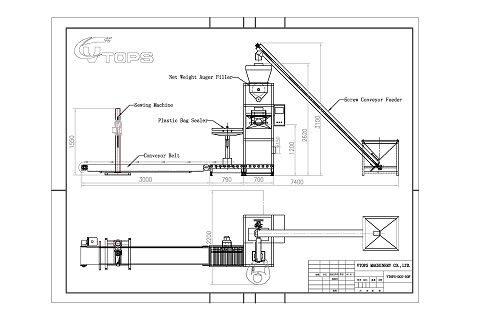

Normal, The 50 kg bag packing machine mainly including 4 parts, such as: Feeder, Weighing Filling Machine, Conveyor Belt and Sewing Machine.
Working Process
- Step 1: The screw conveyor feeder loading the powder from Jumbo Bag to the hopper of Bag Packing Machine.
- Step 2:
- Manually bag placing
- Weighing System: The packing machine is integrated with a weighing system that accurately measures the weight of the product to be packed. This ensures that each bag has a similar weight of around 50 kilograms.
- Filling System:
The filling system is designed to efficiently fill each bag with the product. Depending on the type of product, it might use an auger, gravity feed, or a pneumatic system. - Sealing Mechanism: After the bag is filled, it needs to be sealed (sewing,heating or weld). This could be done using heat sealing, stitching, or a combination of both.
- → next process.
Working Video
Advantages
- 1. Packing Weight: 5 kgs to 50 kgs.
- 2. Automatic weighing filling system.
- 3. Weighing accurately, accuracy more than 99.7%.
- 4. 3 meters conveyor belt (optional).
- 5. Easy to operate and maintenance.
- 6. Labor-saving and increase efficiency.
Product Description
- 1. Filled Error: ≤ 0.3%.
- 2. Measurement Method: Fill-By-Weight.
- 3. Automatic Grade: Manually Place Bag.
- 4. Certification: CE Approved.
