50Kg Grains Weighing and Packing Machine | VTOPS-DGS-50K

  • Bagging Weight from 5kg to 50kg.
  • For granular products such as grains, rice, and beans.
  • Weight adjusted on the touch screen without additional tools.
SKU VTOPS-DGS-50K Category Tags ,

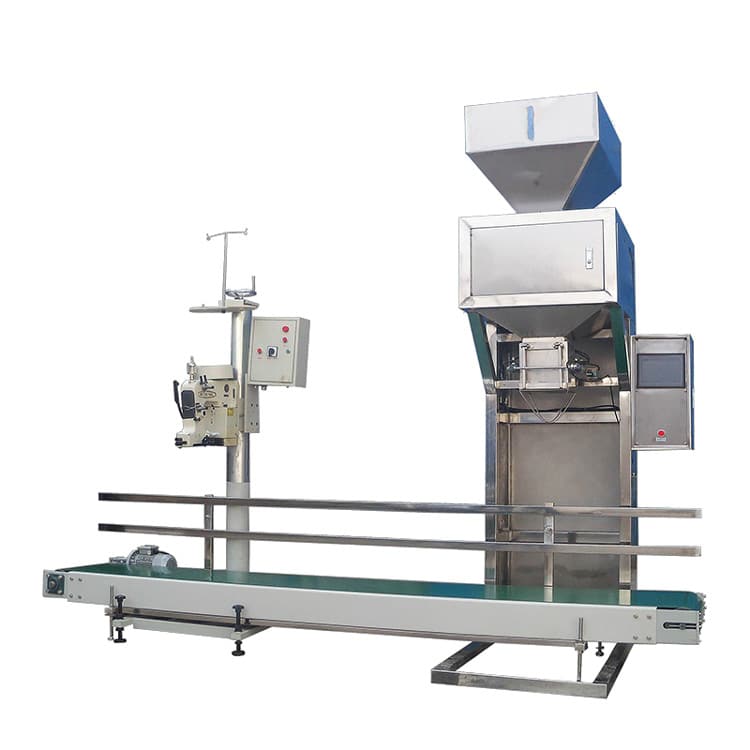

5Kg -50Kg Big Bags Grains Weighing and Packing Machine | VTOPS-DGS-50K

The bagging weight of DGS-50K grains weighing and packing machine is adjustable from 5kg to 50kg without tools. The machine uses pneumatic gate feeding or belt feeding modes with advanced Electrodeless frequency conversion technology.

And we also have the granule weighing packing machine from 30 grams to 6000 grams. Please click the following link to view more details! 30 grams to 6000 grams Granule Weighing Packing Machine

The machine unit consists of automatic granule weighing filling machines, conveyor equipment, sewing equipment, and feeding equipment. It has a reasonable structure, beautiful shape, easy operation, and accurate weighing characteristics.


The 5Kg -50Kg grains weighing packing machine specializes in granular and irregular materials, such as granules, granule-powder mixtures, strip shape materials, block shape materials, threadlike tobacco materials, and other materials’ quantitative packing.

Some materials are as follows: fertilizers, feed, Chinese herbal medicines, Chinese medicine granules, premix, washing powder, casual snacks, candies, melon seeds, peanuts, salt, monosodium glutamate, chicken powder, seeds, grains, hardware, and other granular materials.

Technical Parameters

Bagging Weight 5-50 Kg 5-50 Kg 5-50 Kg
Packed Accuracy ≥ 99.5% ≥ 99.7% ≥ 99.7%
Packing Speed 4-8 bags/min 5-10 bags/min 10-20 bags/min
Weighing Method Clamp Bags Weighing 1-unit Hopper Weighing 2-unit Hopper Weighing
Clamp & Hold Device Yes Optional Optional
Silo Capacity -- 95 Liters 95 Liters
Voltage AC Single-phase 220V AC Single-phase 220V AC Single-phase 220V
Dimension 980×850×2620 mm 950×1000×2700 mm 1500×1200×3000 mm

Video Gallery


  • 1. Weighing by hopperless bag-clamping weigher, or weighing-hoppers.
  • 2. All structure are food grade SUS304 stainless steel.
  • 3. Filling weighing accuracy is greater than 99.5%.
  • 4. LCD touch screen and PLC control, easier operation
  • 5. Networking ensuring humanized operation and reducing labor intensity.
    They are following: filling machine, conveyor belts, sewing machine and controller.
  • 6. IP54.
  • 7. 1DC-50 and 2DC-50K with multi-stage feeding device.
    It have a wide weighing range, guaranteeing maximum and minimum weighing speed and accuracy.
  • 8. VTOPS-2DC-50 equipped with dobule weighing hoppers.
    Double hoppers take turns to weigh and fill, increase the speed of packaging.
  • 9: Optional equipments: conveyor, sewing machine, air pump.
