5Kg & 50Kg Wheat Flour Packing Machine

5 Kg & 50 Kg Wheat Flour Packing Machine | Atta Powder Packing Machine

Wheat flour packing machine is especially designed for wheat flour into open-mouth bags or woven bags. Such as: plastic woven bags, Kraft bags, sack bags, paper-plastic compound bags, and barrels, cartons.

The packing weight is adjustable from 5 kg to 50 kg without any tools.

Firstly, what is the working process of 50 Kg flour packing machine?

First of all, the wheat flour will be loaded into a hopper of 50 kg big bag packing machine by a screw conveyor feeder.
Then,
1) Manually placing the bag on the Clamp and Hold Device of 50 kg big bag packing machine;
2) Net Weight Auger Filler Filling & Weighing untill to the weight of your set;
3) Conveying to next step to sewing bags;
4) Sealing (sewing, heating or weld);
5) Next process

A video of 50 kg big bag packing machine is following:

Secondly, Technical Drawing and Photos:

A Technical CAD Drawing of 50 Kg big bag powder packing machine is following:

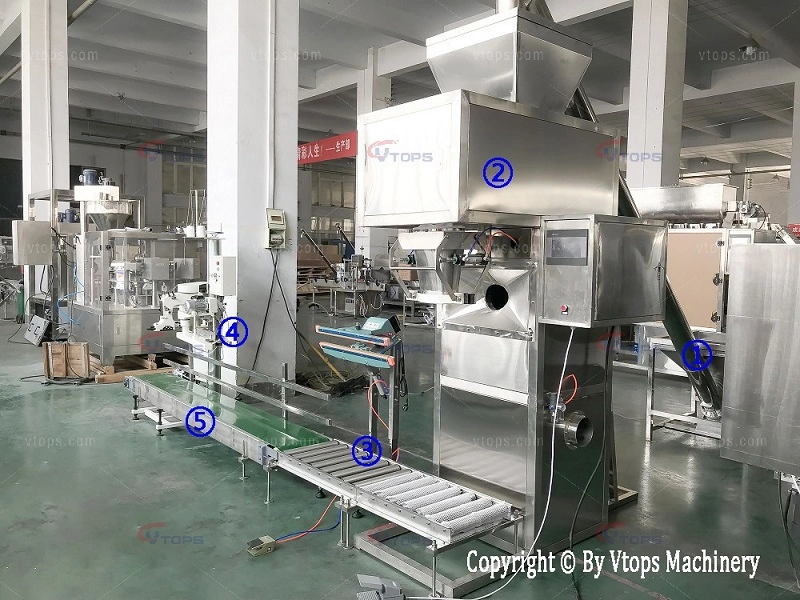

A Real Machine Photo of 50 Kg big bag powder packing machine is following:
Description of the serial number in the photo:

• ① Screw Conveyor Feeder: The diameter of convryor tube is 159mm.
• ② Net Weight Auger Filler: Weighing and filling weight is adjustable from 5kg to 50kg.
• ③ Plastic Bag Heat Sealer: Optional.
• ④ Bags Sewing Machine.
• ⑤ Conveyor Belt: 3 meters long and 50 cm wide.
• ⑥ Air Compressor: Optional.

Product Description

• 1. Filled Error: ≤ 0.5%.
• 2. Measurement Method: Fill-By-Weight.
• 3. Automatic Grade: Manually Place Bag.
• 4. Certification: CE Approved.
