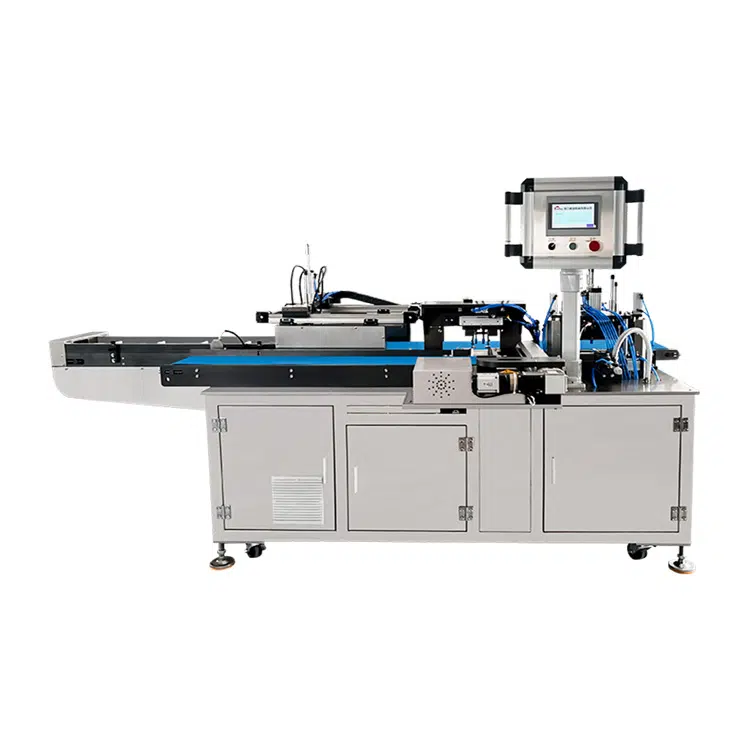

The fully automatic multifunction vacuum bagging and packaging machine uses advanced pushing methods to efficiently feed solid sheets or irregular materials into premade bags. The most prominent feature of this machine is that it will vacuum the bag before sealing it to ensure optimal packaging. The machine features single, dual, and quad push options to increase the speed and versatility of the packaging process.
The vacuum bagging machine is designed for various uses, such as for bagging masks, medical supplies, sanitary products, daily necessities, hardware products, food, compressed biscuits, lumpy bar, and other products.
| Model | VTOPS-TD100 | VTOPS-TD200 |
|---|---|---|
| Bagging Stations | 1 | 2 |
| Vacuum Sealing | ||
| Bag Width | 70-150mm (Customizable) | 70-150mm (Customizable) |
| Bag Length | 130-270mm (Customizable) | 130-270mm (Customizable) |
| Packaging Material | Composite film, aluminum-plated film, polyethylene/polypropylene composite materials | |
| Bagging Method | Direct Push, Clamp Push [1] | Direct Push, Clamp Push [1] |
| Packaging Speed | 20-30 bags/minute | 30-60 bags/minute |
| Power Supply | Three-phase four-wire 380V 50/60Hz | Three-phase four-wire 380V 50/60Hz |
| Power | 6.5Kw | 6.5Kw |
| Compressed Air | 0.5~0.8MPa | |
| Air Consumption | 300-500L/min | |
| Total Weight | 800Kg | 900Kg |
| Machine Dimensions | 3810mm×1500mm×1650mm | 4500mm×1800mm×1650mm |
|
