Automatic Round Bottle Labeling Machine | VTOPS-L-RB


Automatic Round Bottle Labeling Machine

Automatic round bottle labeling machine suitable for all kinds of round or cylinder containers. Such as: round plastic bottles, round glass bottles, round cans, round jars and more.


1. Features:

  • 1. Its features simple structure and operation. High accuracy attaching and reliable property.
  • 2. The machine adopts mature PLC control system to ensure the stable running in high speed.
  • 3. Touch screen makes easy reading and excellent looking.
  • 4. More than 10 groups of labeling parameters saved, makes setting rapidly.
  • 5. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel.
  • 6. Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.

2. Technical Parameters:

Labeling Speed 40-250 pcs/min
Labeled Error ≤ 1mm
Label Size (L)20-300mm (H)10-180mm
Containers Size Φ20-φ100mm H20-200mm
Roll inside(mm) Φ76mm
Roll outerside diameter(mm) Maximum Φ300mm
Machine sine (mm) 1700*650*1300mm
Power AC Single-phase 220V 50Hz 1.5kw
Machine Weight 180 Kg
Manufacturer Zhengzhou Vtops Machinery Co., Ltd.

3. Detailed Photos:

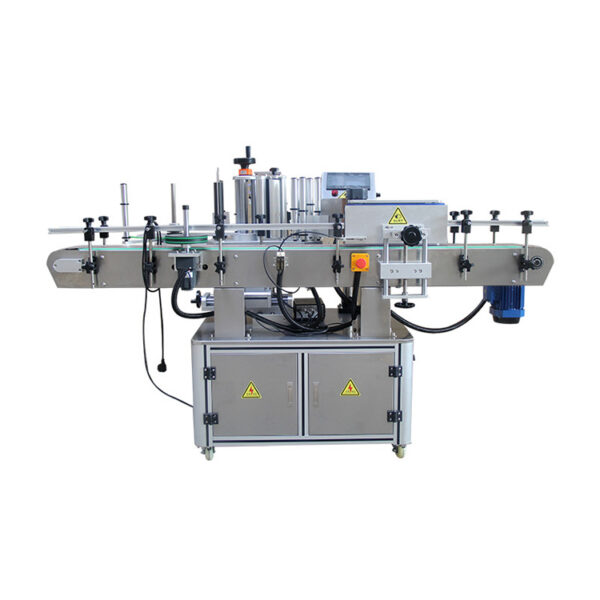

Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine
Automatic Round Bottle Labeling Machine

4. Working Video:

5. CAD Drawing:

CAD Drawing of Automatic Round Bottle Labeling Machine Learn more about Labeling Machines.
