Impulse Pedal Sealing Machine / Pedal Double-Side Heating Sealer machine for Plastic Bag

Impulse pedal sealing machine is suitable plastic bags sealing, such as PE, PVC, PP film or bags. The sealing height is adjustable up and down. It is easy to operate and high efficiency.

The impulse pedal sealing machine of model VTOPS-PFS-2S600 often integrated in 50 kg big bag packing machine.

1. Features:

• 1. Work on Polyethylene, Polypropylene & Polyolefine Compounds plastic film.
• 2. Sturdy aluminum construction with support shelf for package.
• 3. Models with sealing length 450 MM & 650 MM available on request
• 4. 350 MM sealing length, 8 MM sealing width.
• 5. Simple to use, no operator training requires.
• 6. Impulse sealing system offer uniform, neat and strong seals.
• 7. No warm-up time necessary.
• 8. Timer for sealing control.
• 9. Adjustable pedal height.
• 10. Adjustable work table height.

2. Technical Parameters:

• Model: VTOPS-PFS-2S600
• Sealing Type: Impulse Heat
• Control Method: Pedal + Cylinder
• Seal Strip Length: 720mm
• Maximum Seal Length: 650mm
• Seal Width: 8mm
• Seal Height: 700-920mm
• Heating Time: 0.2-2 Seconds
• Power: Single-phase 220V 1.6 Kw
• Machine Weight: 50 Kgs (Stainless Steel Rollers Included)
• Dimensions: 800×570×880mm
• Manufacturer: Zhengzhou Vtops Machinery Co., Ltd.

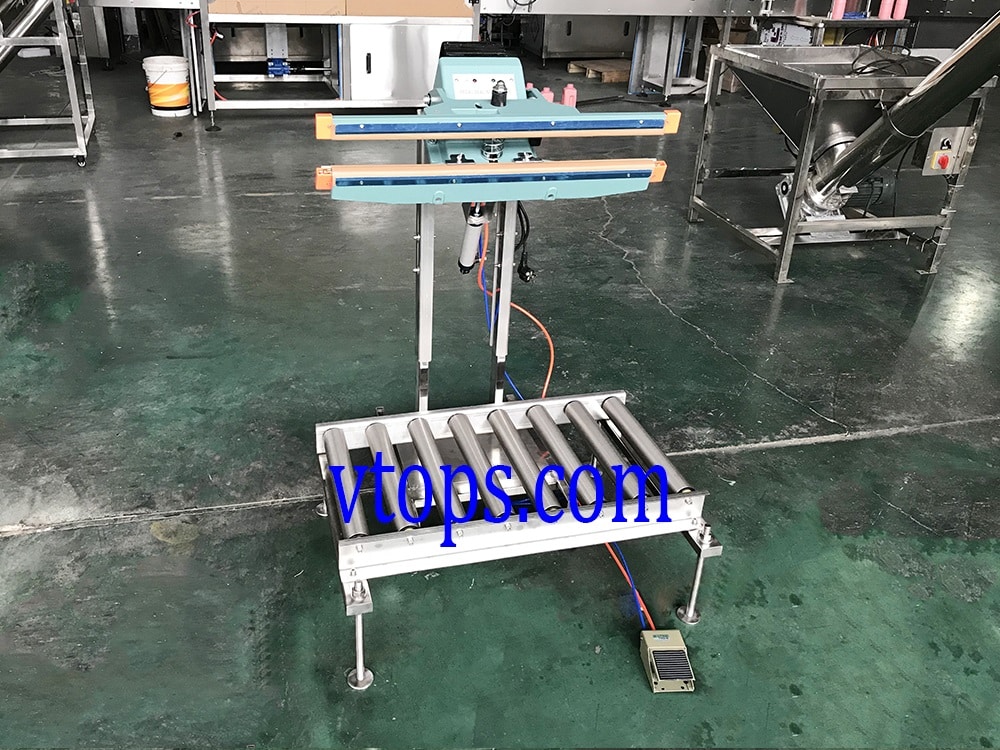

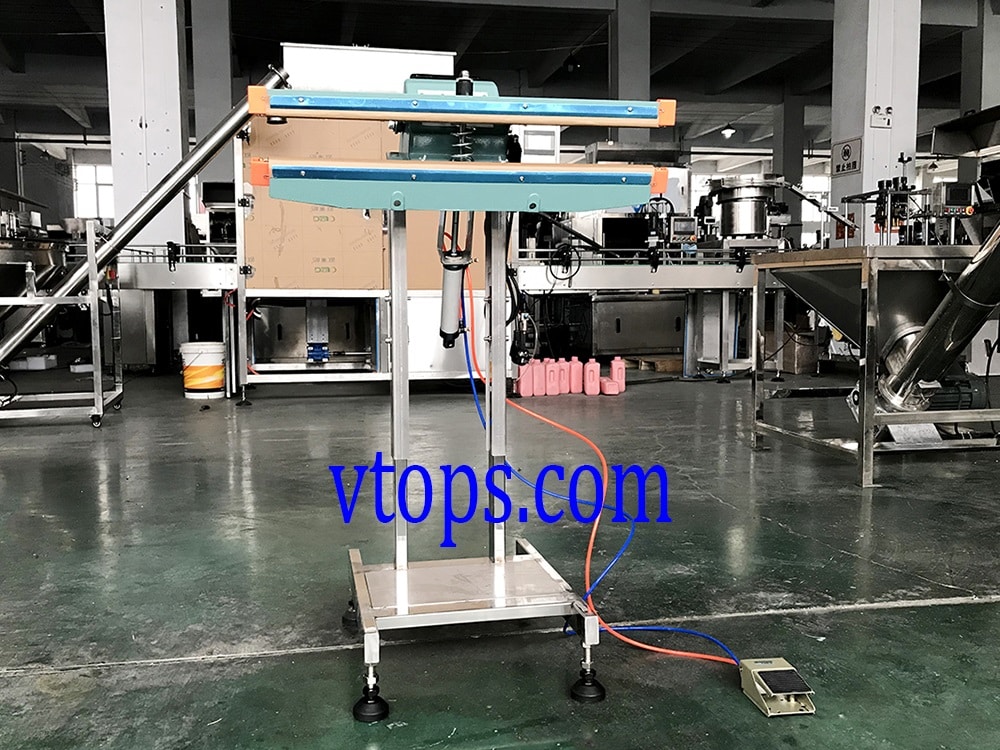

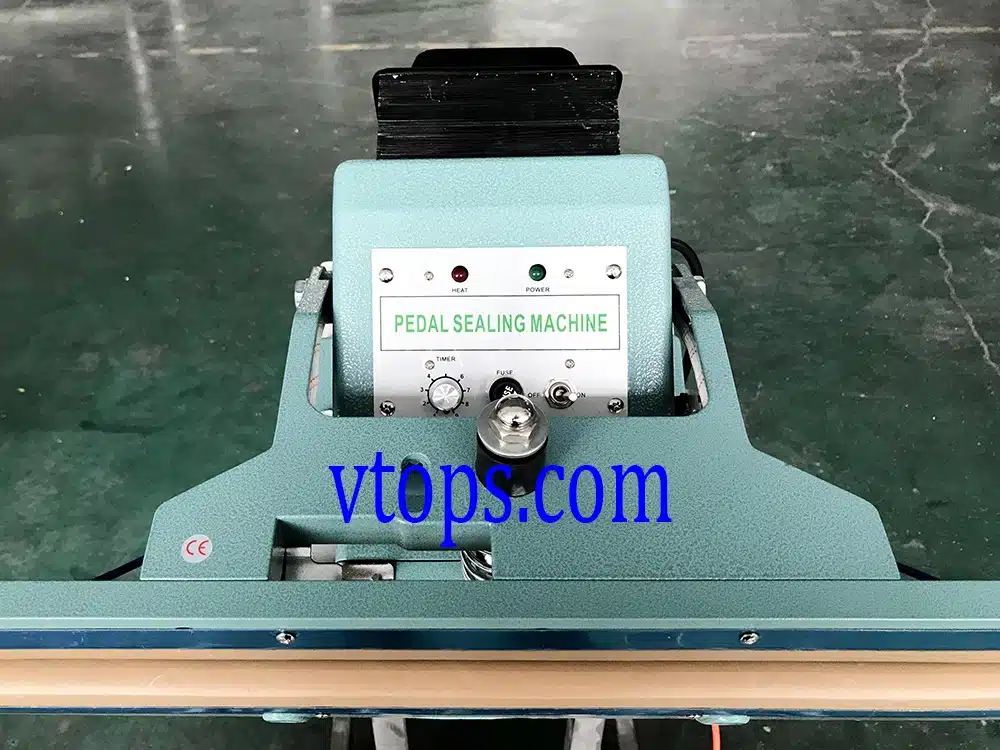

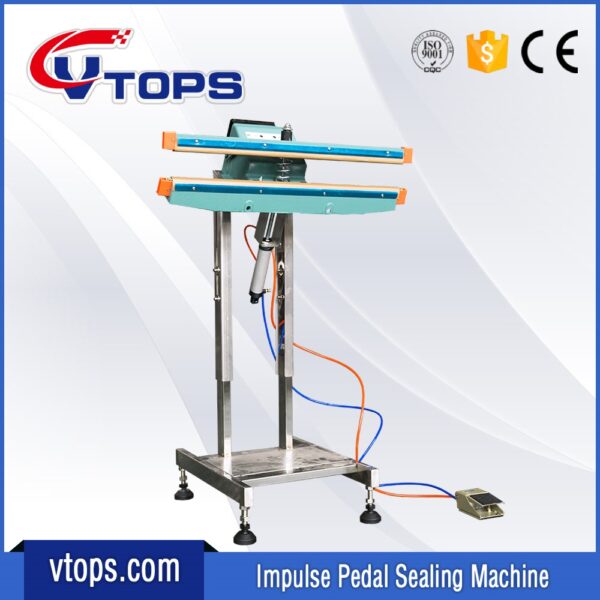

3. Picture Gallery:

4. Video Gallery
