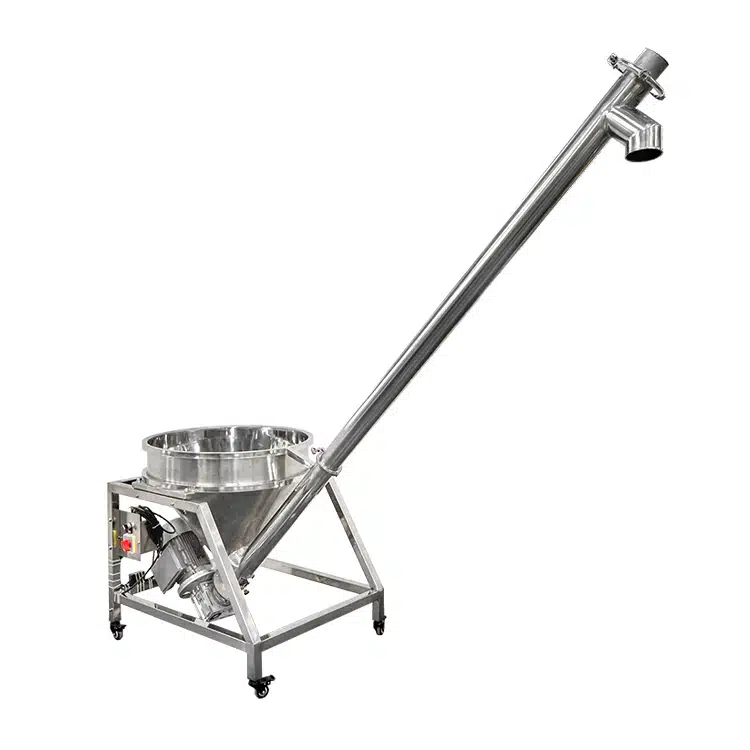

Vibrating Powder Feeding Machine | Vtops Screw Conveyor Feeder
A screw conveyor feeder is a versatile feeding device used to move or convey materials from one place to another. It consists of a helical screw or auger blade, typically contained within a tube or trough, which rotates to transport materials in a controlled manner. In the food packaging industry, screw feeders are usually equipped with a storage hopper of different capacities to increase packaging efficiency. Their versatility and efficiency make them an essential component in various material handling systems.
At VTOPS, the conveyor machine is manufactured to food standards, equipped with a vibration device to speed up feeding, and used with an auger filler.
This Image from Wikipedia.
Features
- 1. It is an auxiliary machine for filling machines.
- 2. Automatic feeding materials is controlled by the filling machine.
- 3. Set the switch is provided with a return material, easy to clean materials.
- 4. Hopper provided with vibrators, feeding unhindered.
- 5. Made of food-grade 304 stainless steel.
- 6. Save labor and improve work efficiency.
- 7. This machine is advice if your filling weight more than 50 grams.
Technical Parameters:
Model | F114S | F114R1 | F114R2 | F114R3 | F133R | F159S |
---|---|---|---|---|---|---|
Brand | VTOPS | VTOPS | VTOPS | VTOPS | VTOPS | VTOPS |
Conveyor Diameter | 114 mm | 114 mm | 114 mm | 114 mm | 133 mm | 159 mm |
Deceleration | Belt | Gearbox | Gearbox | Gearbox | Gearbox | Reducer |
Storage Hopper | Square | Round | Round | Round | Round | Square |
Hopper Volume | 180 L | 180 L | 180 L | 500 L | 180 L | 180 L |
Welding Quality | Ordinary | Ordinary | Fully-welded | OrdinaryFully-welded Customizable | OrdinaryFully-welded Customizable | OrdinaryFully-welded Customizable |
PolishingQuality | Ordinary | Ordinary | Fine-polished | OrdinaryFine-polished Customizable (should Fully-welded) | OrdinaryFine-polished Customizable (should Fully-welded) | OrdinaryFine-polished Customizable (should Fully-welded) |
Lifting Height | 1.7 m | 1.7 m | 2.1 m | Customizable | Customizable | 2.6 m |
Conveying Speed | 1-3 Ton per hour | 1-3 Ton per hour | 1-3 Ton per hour | 1- 3 Ton per hour | 1-4 Ton per hour | 1-5 Ton per hour |
Vibration | ||||||
Reverse | ||||||
Voltage | AC Three-phase 380V 50/60HzIf power less than 1.5kw, single-phase motor can be customized. Contact us for support. | |||||
FM Power | 1.1 Kw | 1.5 Kw | 1.5Kw | 1.5Kw | 2.2 Kw | 3.0 Kw |
FM Rotating Speed | 910 r/min | 1400 r/min | 1400 r/min | 1430 r/min | 1410 r/min | 1410 r/min |
Ratings | IP54 | IP54 | IP54 | IP55 | IP55 | IP54 |
VM Power | 30 W | 30 W | 30 W | 60 W | 30 W | 30 W | [1]: Voltage can be customized. [2]: Fully-welded and Fine-polished available for Pharmaceutical Production. |
