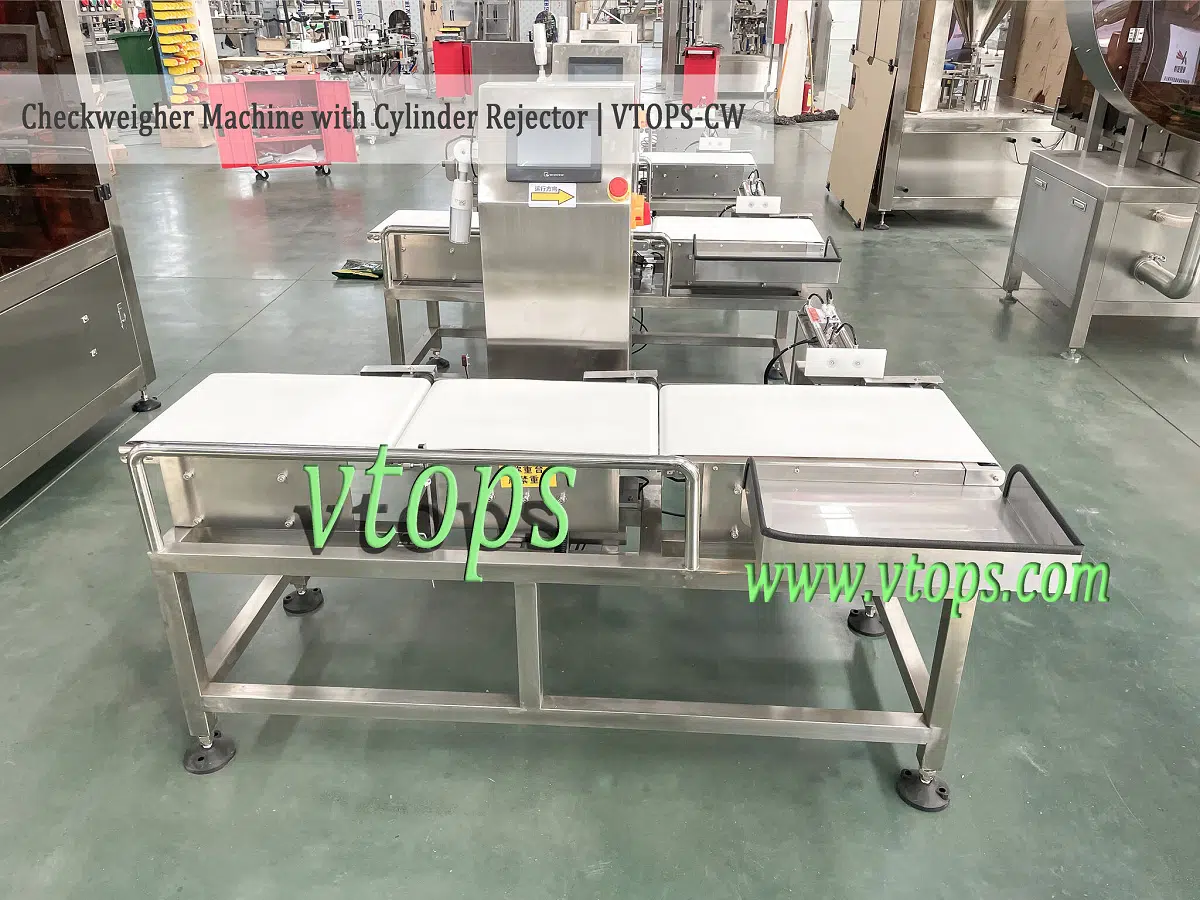

Checkweigher Machine | VTOPS-CW
Checkweigher machine is suitable for testing the weight of a single item whether is qualified or not. And reject the item if the weight is unqualified.

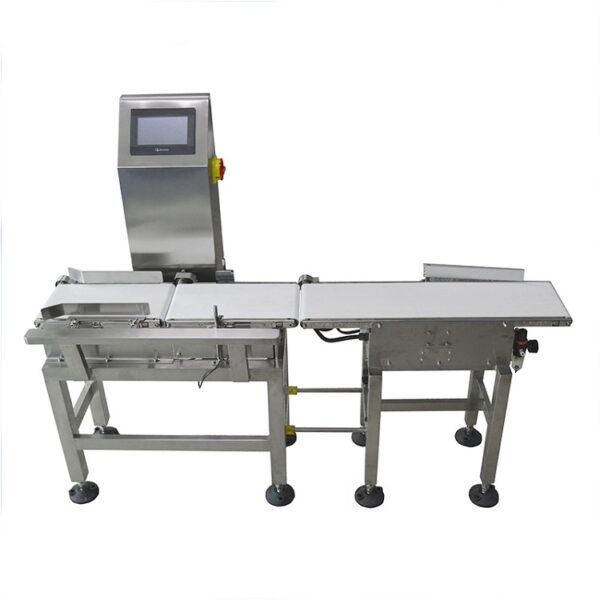

Checkweigher Machine | VTOPS-CW6000
1. Features:
- 1. Report function: built-in report statistics.
The report can generate EXCEL format, can automatically generate a variety of real-time data reports. - 2. Interface: reserved standard interface.
Convenient for data management, can connect communication network with PC and other intelligent devices. - 3. Achieve centralized control: can achieve centralized control of a computer / man-machine interface operates many check weighers.
- 4. Parameter recovery function: possessing the factory parameter setting recovery function.
- 5. Versatility: Standardized machine structure and standardized man-machine interface can complete the weighing of various materials.
- 6. Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications.
- 7. Simple operation.
- 8. Speed is adjustable.
- 9. High-speed and high-precision.
- 10. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
2. Photo Gallery:
3. Technical Parameters:
| Model | VTOPS-CW200 | VTOPS-CW6000 | VTOPS-CW30000 |
|---|---|---|---|
| Weighing Range | 5-200 grams | 10-6000 grams | 5-30 Kgs |
| Max. Speed | 100 PCS | 50 PCS | 30 PCS |
| Max. Belt Spped | 55 m/min | 40 m/min | 30 m/min |
| Belt Size (L*W) | 350*150mm | 650*400mm | 860*500mm |
| HMI | 7″ Touch Screen | ||
| Rejrctor | Air Blowing | Pneumatic Pusher | Pneumatic Pusher |
| Voltage | AC Single Phase 220V 50/60Hz | ||
| Machine Weight | 100 KGS | 260 KGS | 280 KGS |
| Packing Dimension | 125*57*115 cm | 160*95*150 cm | 165*115*140 cm |
